CS14-16X16 Couplamatic VARI-CRIMP Coupling - NPTF - Male Swivel 90° - 1" Hose ID - 1-11-1/2 Thread (Old Part Number: 16209V)

CS14-16X16 by Couplamatic | VARI-CRIMP Coupling | 1" Hose ID x 1-11-1/2 Thread Male Swivel NPTF | 90° Elbow | Trivalent Zinc Plating | Replaces: 16209V

Save $21.35 Save $21.35
$53.38
$53.38 - $53.38
$53.38
$32.03
$32.03 - $32.03
$32.03

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Swivel 90°
Specifications for Variant SKU: CS14-16X16 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Male NPTF, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Swivel for installation purposes only. Leakage may occur at low pressure.

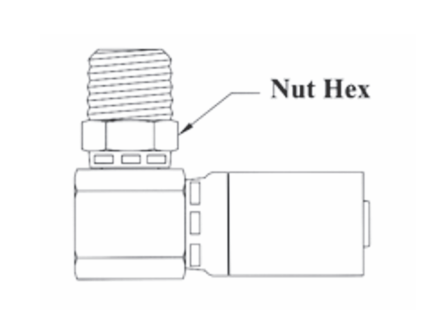

Part Number Hose ID Pipe Size Thread Size Nut Hex Previous Part Number
CS14-4x4 1/4" 1/4" 1/4-18 5/8" 4206V
CS14-6x6 3/8" 3/8" 3/8-18 3/4" 6209V
CS14-6x8 3/8" 1/2" 1/2-14 7/8" 6251V
CS14-8x8 1/2" 1/2" 1/2-14 7/8" 8209V
CS14-12x12 3/4" 3/4" 3/4-14 1-1/4" 12209V
CS14-16x16 1" 1" 1-11 1/2 1-3/8" 16209V

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
