CS14-8X8 Couplamatic VARI-CRIMP Coupling - NPTF - Male Swivel 90° - 1/2" Hose ID - 1/2-14 Thread (Old Part Number: 8209V)

CS14-8X8 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 1/2-14 Thread Male Swivel NPTF | 90° Elbow | Trivalent Zinc Plating | Replaces: 8209V

Save $8.29

$20.72

$20.72 - $20.72

$20.72

$12.43

$12.43 - $12.43

$12.43

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Swivel 90°

Specifications for Variant SKU: CS14-8X8 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Male NPTF, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Vari-Crimp — Universal Crimp

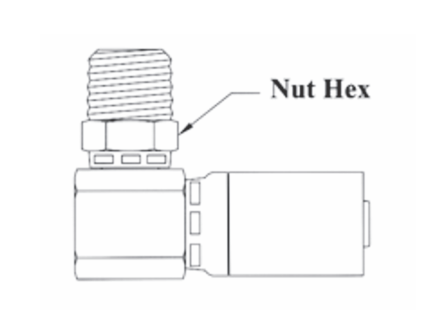

CS14 Vari-Crimp — NPTF Male Swivel, 90° Elbow

CS14 is the NPTF Male Swivel, 90° Elbow configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?

The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Swivel for installation purposes only. Leakage may occur at low pressure.
Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.

2

Which sizes are available?

Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Previous Part Number
CS14-4x4	1/4"	1/4"	1/4-18	5/8"	4206V
CS14-6x6	3/8"	3/8"	3/8-18	3/4"	6209V
CS14-6x8	3/8"	1/2"	1/2-14	7/8"	6251V
CS14-8x8	1/2"	1/2"	1/2-14	7/8"	8209V
CS14-12x12	3/4"	3/4"	3/4-14	1-1/4"	12209V
CS14-16x16	1"	1"	1-11 1/2	1-3/8"	16209V

i

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
