CS14-4X4 Couplamatic VARI-CRIMP Coupling - NPTF - Male Swivel 90° - 1/4" Hose ID - 1/4-18 Thread (Old Part Number: 4206V)

CS14-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/4-18 Thread Male Swivel NPTF | 90° Elbow | Trivalent Zinc Plating | Replaces: 4206V

Save $1.16

$10.41

$10.41 - $10.41

$10.41

$9.25

$9.25 - $9.25

$9.25

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Swivel 90°

Quantity

Specifications for Variant SKU: CS14-4X4 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Male NPTF, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. Swivel for installation purposes only. Leakage may occur at low pressure.

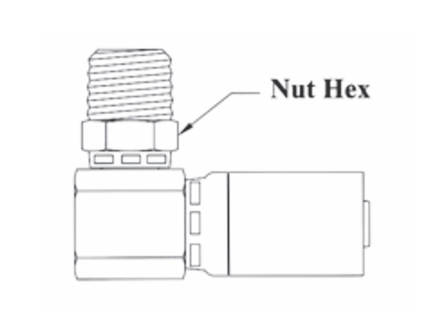

Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Previous Part Number
CS14-4x4	1/4"	1/4"	1/4-18	5/8"	4206V
CS14-6x6	3/8"	3/8"	3/8-18	3/4"	6209V
CS14-6x8	3/8"	1/2"	1/2-14	7/8"	6251V
CS14-8x8	1/2"	1/2"	1/2-14	7/8"	8209V
CS14-12x12	3/4"	3/4"	3/4-14	1-1/4"	12209V
CS14-16x16	1"	1"	1-11 1/2	1-3/8"	16209V

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
