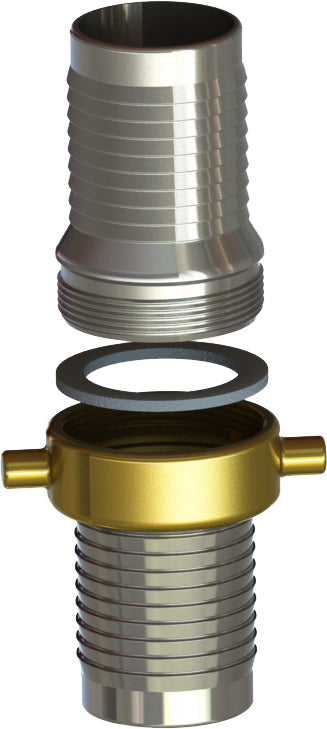

CSB-10 by Campbell Fittings | Suction Hose Coupling | Complete Set | 2-1/2" Male NPSM Thread x 2-1/2" Female NPSM Thread x 2-1/2" Hose Shank | Nut: Brass | Plated Steel Shank

CSB-10 by Campbell Fittings | Suction Hose Coupling | Complete Set | 2-1/2" Male NPSM Thread x 2-1/2" Female NPSM Thread x 2-1/2" Hose Shank | Nut: Brass | Plated Steel Shank

Save $15.70 Save $15.70
$74.76
$74.76 - $74.76
$74.76
$59.06
$59.06 - $59.06
$59.06

by Campbell
Suction Hose Couplings:CSB Complete Set
Specifications for Variant SKU: CSB-10 Campbell Fittings
Series: CSB Series
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Male NPSM, 2-1/2in Female NPSM, 2-1/2in Hose Barb, 2-1/2in Hose Barb, Some Ends Match
Material(s): Plated Steel, Brass
Recommended Use:
  • Liquid, bulk handling
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Suction Couplings machined from pipe eliminate porosity and parting lines, improving sealing and retention.
Part Number Hose Size
CSB-5 1-1/4"
CSB-6 1-1/2"
CSB-8 2"
CSB-10 2-1/2"
CSB-12 3"
CSB-16 4"
CSB-24 6"
CSB-32 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
