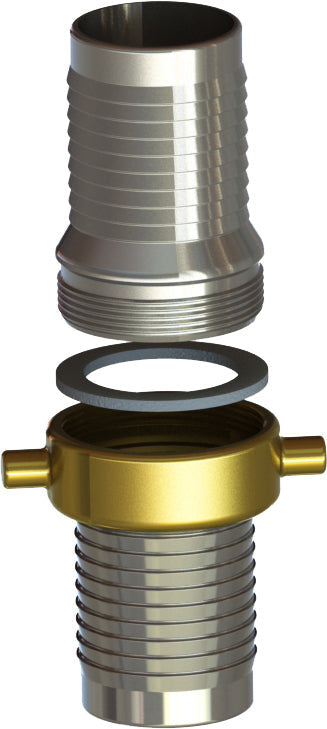

CSB-6 by Campbell Fittings | Suction Hose Coupling | Complete Set | 1-1/2" Male NPSM Thread x 1-1/2" Female NPSM Thread x 1-1/2" Hose Shank | Nut: Brass | Plated Steel Shank

CSB-6 by Campbell Fittings | Suction Hose Coupling | Complete Set | 1-1/2" Male NPSM Thread x 1-1/2" Female NPSM Thread x 1-1/2" Hose Shank | Nut: Brass | Plated Steel Shank

Save $11.60 Save $11.60
$40.62
$40.62 - $40.62
$40.62
$29.02
$29.02 - $29.02
$29.02

by Campbell
Suction Hose Couplings:CSB Complete Set
Specifications for Variant SKU: CSB-6 Campbell Fittings
Series: CSB Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPSM, 1-1/2in Female NPSM, 1-1/2in Hose Barb, 1-1/2in Hose Barb, Some Ends Match
Material(s): Plated Steel, Brass
Recommended Use:
  • Liquid, bulk handling
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Suction Couplings machined from pipe eliminate porosity and parting lines, improving sealing and retention.
Part Number Hose Size
CSB-5 1-1/4"
CSB-6 1-1/2"
CSB-8 2"
CSB-10 2-1/2"
CSB-12 3"
CSB-16 4"
CSB-24 6"
CSB-32 8"
