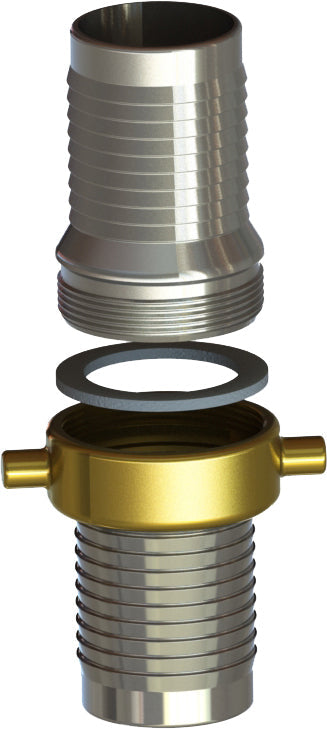

CSB-8 by Campbell Fittings | Suction Hose Coupling | Complete Set | 2" Male NPSM Thread x 2" Female NPSM Thread x 2" Hose Shank | Nut: Brass | Plated Steel Shank

CSB-8 by Campbell Fittings | Suction Hose Coupling | Complete Set | 2" Male NPSM Thread x 2" Female NPSM Thread x 2" Hose Shank | Nut: Brass | Plated Steel Shank

Save $23.81 Save $23.81
$59.52
$59.52 - $59.52
$59.52
$35.71
$35.71 - $35.71
$35.71

by Campbell
Suction Hose Couplings:CSB Complete Set
Specifications for Variant SKU: CSB-8 Campbell Fittings
Series: CSB Series
Shape (Orientation): Straight
Ends Configuration: 2in Male NPSM, 2in Female NPSM, 2in Hose Barb, 2in Hose Barb, Some Ends Match
Material(s): Plated Steel, Brass
Recommended Use:
  • Liquid, bulk handling
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Suction Couplings machined from pipe eliminate porosity and parting lines, improving sealing and retention.
Part Number Hose Size
CSB-5 1-1/4"
CSB-6 1-1/2"
CSB-8 2"
CSB-10 2-1/2"
CSB-12 3"
CSB-16 4"
CSB-24 6"
CSB-32 8"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
