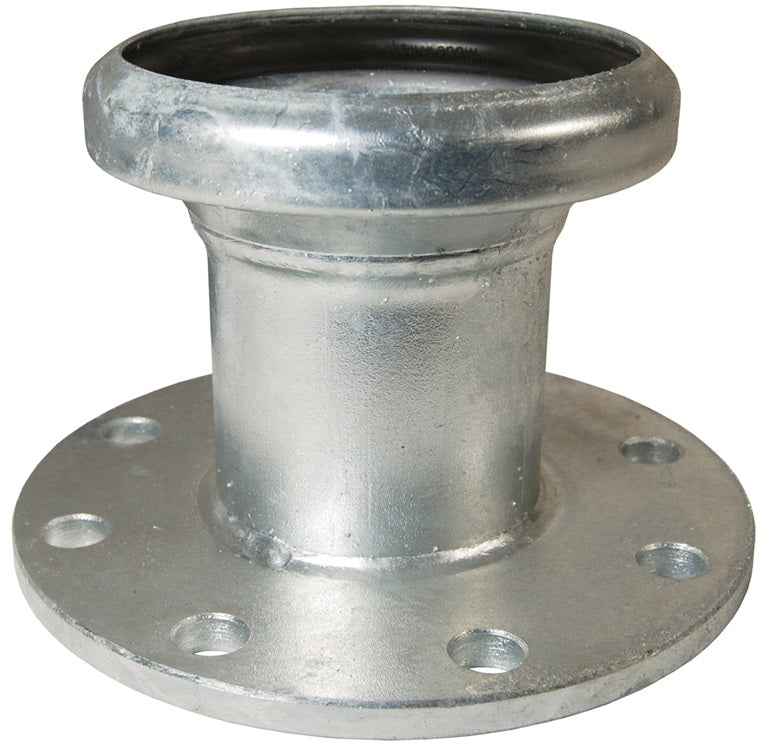

FC3146 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 6" Size | Female x 150# ASA Flange | Galvanized Steel

Name: FC3146 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 6" Size | Female x 150# ASA Flange | Galvanized Steel
Brand: Dixon
SKU: FC3146 Dixon
Price: 216.33 USD
Availability: InStock

Save $4.92

$221.25

$221.25 - $221.25

$221.25

$216.33

$216.33 - $216.33

$216.33

Dixon Valve
Type B (Bauer Style) Quick Connect Fitting | Female x 150# ASA Flange

Used primarily on irrigation and suction lines.

Quantity

Specifications for Variant SKU: FC3146 Dixon
Shape (Orientation):	Straight
Ends Configuration:	6in Female Bauer - Type B, 6in 150# Flange
Material(s):	Galvanized Steel

Features:
Bauer style locks on the male side. Has a double pin locking lever for smooth closing action. Gasket included on female half. Each coupler is equipped with a safety pin to prevent accidental openings.
Materials:
Hot dipped, galvanized
Safety Notes:
These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.

Type B (Bauer-Lock) \| Female x 150# ASA Flange

Part Number	Size
FC3144	4"
FC3146	6"
FC3148	8"
FC31410	10"
FC31412	12"

Type B (Bauer-Lock) \| Male x 150# ASA Flange

Part Number	Size
MC3134	4"
MC3136	6"
MC3138	8"
MC31310*	10"
MC31312*	12"

*10" and 12" supplied with ACB304 lever assist bar

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
