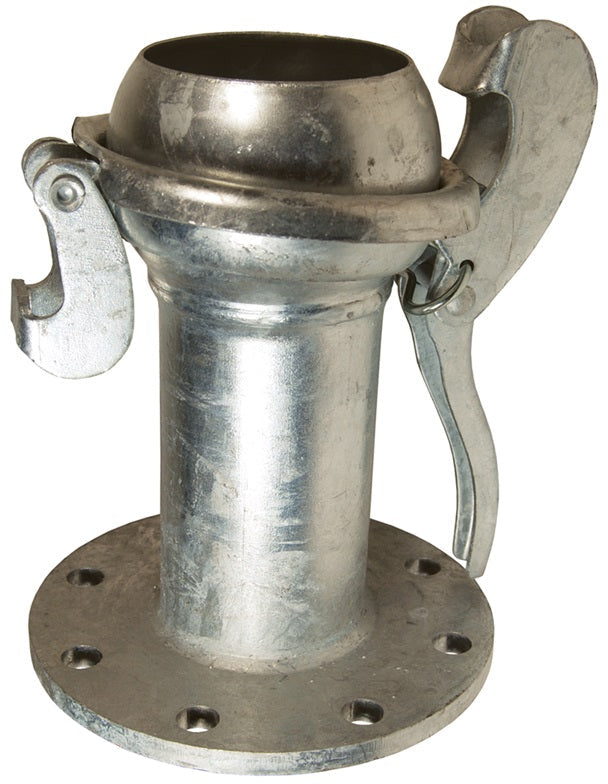

MC31310 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 10" Size | Male x 150# ASA Flange | Galvanized Steel

MC31310 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 10" Size | Male x 150# ASA Flange | Galvanized Steel

Save $642.88 Save $642.88
$1,607.20
$1,607.20 - $1,607.20
$1,607.20
$964.32
$964.32 - $964.32
$964.32

Dixon Valve
Type B (Bauer Style) Quick Connect Fitting | Male x 150# ASA Flange

Used primarily on irrigation and suction lines.
Specifications for Variant SKU: MC31310 Dixon
Shape (Orientation): Straight
Ends Configuration: 10in Male Bauer - Type B, 10in 150# Flange
Material(s): Galvanized Steel
Features:
  • Bauer style locks on the male side.
  • Has a double pin locking lever for smooth closing action.
  • Gasket included on female half.
  • Each coupler is equipped with a safety pin to prevent accidental openings.
Materials:
  • Hot dipped, galvanized
Safety Notes:
  • These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.
Type B (Bauer-Lock) | Male x 150# ASA Flange
Part Number Size
MC3134 4"
MC3136 6"
MC3138 8"
MC31310* 10"
MC31312* 12"

*10" and 12" supplied with ACB304 lever assist bar

Type B (Bauer-Lock) | Female x 150# ASA Flange
Part Number Size
FC3144 4"
FC3146 6"
FC3148 8"
FC31410 10"
FC31412 12"
