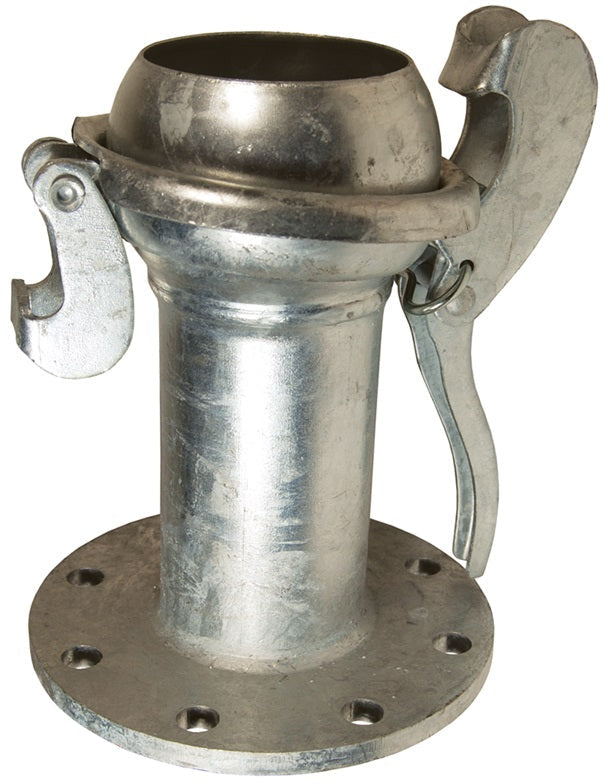

MC3136 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 6" Size | Male x 150# ASA Flange | Galvanized Steel

Name: MC3136 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 6" Size | Male x 150# ASA Flange | Galvanized Steel
Brand: Dixon
SKU: MC3136 Dixon
Price: 339.03 USD
Availability: InStock

Save $226.02

$565.05

$565.05 - $565.05

$565.05

$339.03

$339.03 - $339.03

$339.03

Dixon Valve
Type B (Bauer Style) Quick Connect Fitting | Male x 150# ASA Flange

Used primarily on irrigation and suction lines.

Specifications for Variant SKU: MC3136 Dixon
Shape (Orientation):	Straight
Ends Configuration:	6in Male Bauer - Type B, 6in 150# Flange
Material(s):	Galvanized Steel

Features:
Bauer style locks on the male side. Has a double pin locking lever for smooth closing action. Gasket included on female half. Each coupler is equipped with a safety pin to prevent accidental openings.
Materials:
Hot dipped, galvanized
Safety Notes:
These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.

Type B (Bauer-Lock) \| Male x 150# ASA Flange

Part Number	Size
MC3134	4"
MC3136	6"
MC3138	8"
MC31310*	10"
MC31312*	12"

*10" and 12" supplied with ACB304 lever assist bar

Type B (Bauer-Lock) \| Female x 150# ASA Flange

Part Number	Size
FC3144	4"
FC3146	6"
FC3148	8"
FC31410	10"
FC31412	12"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
