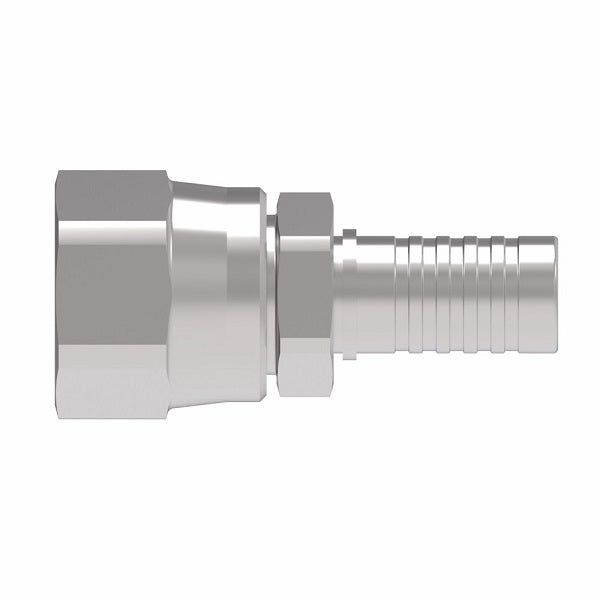

FC8779-0404-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Female 37° JIC Swivel x -04 Hose Barb | Stainless Steel

FC8779-0404-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Female 37° JIC Swivel x -04 Hose Barb | Stainless Steel

Name: FC8779-0404-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Female 37° JIC Swivel x -04 Hose Barb | Stainless Steel
Brand: Danfoss/Eaton
SKU: FC8779-0404-333 Danfoss
Price: 46.47 USD
Availability: InStock

$46.47 - $46.47

$46.47

$46.47 - $46.47

$46.47

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female 37° JIC Swivel - Straight - Stainless Steel

FC Series

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC8779-0404-333 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female JIC, 1/4in Hose Barb
Material(s):	Stainless Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series \| SC-TW Series

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	EØ	Hex 1	Hex 2
FC9779-0404-333	FC8779-0404-333	FC3596-04C	7/16-20	-04	1.55"	0.96"	0.12"	9/16"	7/16"
-	FC8779-0505-333	FC3443-04C	1/2-20	-05	1.50"	1.01"	0.19"	5/8"	1/2"
FC9779-0606-333	FC8779-0606-333	FC3443-05C	9/16-18	-06	1.60"	1.11"	0.25"	11/16"	9/16"
FC9779-0808-333	FC8779-0808-333	FC3596-08C	3/4-16	-08	2.10"	1.21"	0.34"	7/8"	11/16"
FC9779-1010-333	FC8779-1010-333	FC3443-08C	7/8-14	-10	2.21"	1.32"	0.44"	1"	13/16"
FC9779-1212-333	FC8779-1212-333	FC3596-12C	1-5/16-12	-12	2.29"	1.41"	0.56"	1-1/4"	1"
FC9779-1616-333	FC8779-1616-333	FC3596-16C	1-5/16-12	-16"	2.52"	1.64"	0.80"	1-1/2"	1-1/4"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
