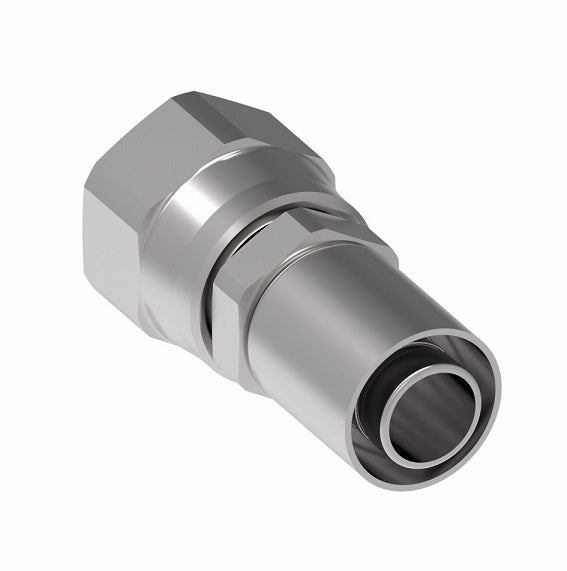

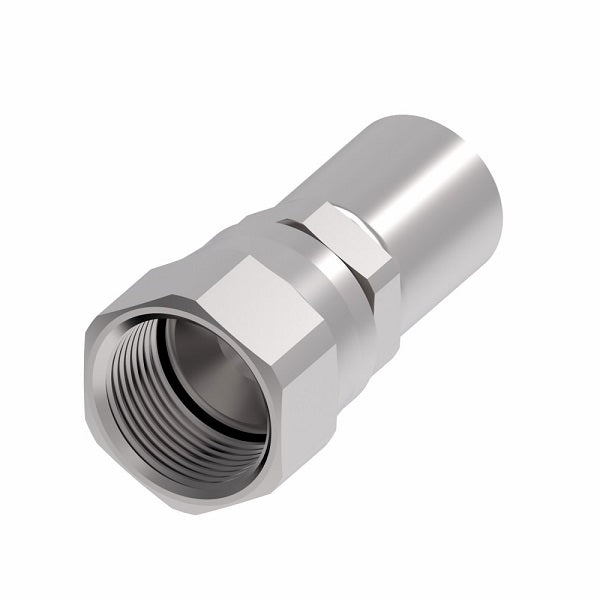

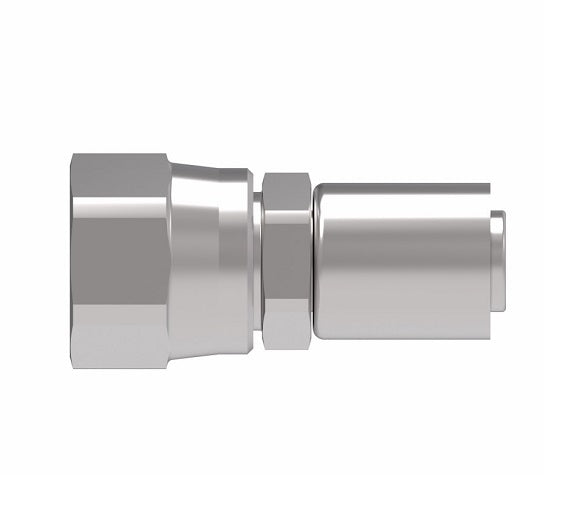

FC9779-0606-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Hose Barb | Stainless Steel
FC9779-0606-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Hose Barb | Stainless Steel
FC9779-0606-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Hose Barb | Stainless Steel
FC9779-0606-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Hose Barb | Stainless Steel

FC9779-0606-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Hose Barb | Stainless Steel

$45.58 - $45.58
$45.58
$45.58 - $45.58
$45.58

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female 37° JIC Swivel - Straight - Stainless Steel

FC Series

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC9779-0606-333 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIC, 3/8in Hose Barb
Material(s): Stainless Steel
Special Properties: Swivel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:
Component Part Numbers
Complete Fitting
Part Number		 Nipple Assembly
Part Number		 Socket
Part Number		 Thread Hose Size A D EØ Hex 1

 Hex 2
FC9779-0404-333 FC8779-0404-333 FC3596-04C 7/16-20 -04 1.55" 0.96" 0.12" 9/16" 7/16"
- FC8779-0505-333 FC3443-04C 1/2-20 -05 1.50" 1.01" 0.19" 5/8" 1/2"
FC9779-0606-333 FC8779-0606-333 FC3443-05C 9/16-18 -06 1.60" 1.11" 0.25" 11/16" 9/16"
FC9779-0808-333 FC8779-0808-333 FC3596-08C 3/4-16 -08 2.10" 1.21" 0.34" 7/8" 11/16"
FC9779-1010-333 FC8779-1010-333 FC3443-08C 7/8-14 -10 2.21" 1.32" 0.44" 1" 13/16"
FC9779-1212-333 FC8779-1212-333 FC3596-12C 1-5/16-12 -12 2.29" 1.41" 0.56" 1-1/4" 1"
FC9779-1616-333 FC8779-1616-333 FC3596-16C 1-5/16-12 -16" 2.52" 1.64" 0.80" 1-1/2" 1-1/4"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
