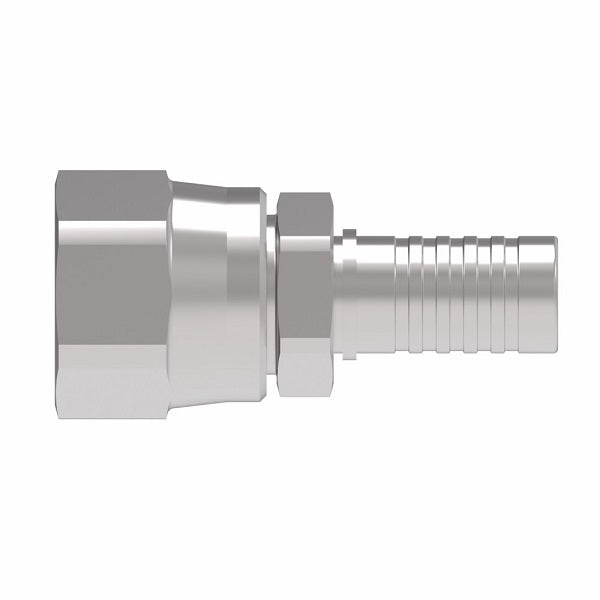

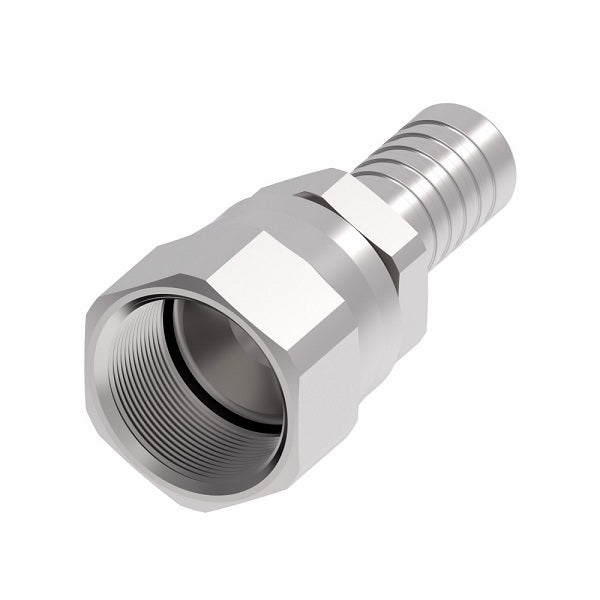

FC8779-0808-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Hose Barb | Stainless Steel
FC8779-0808-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Hose Barb | Stainless Steel | Pack of 10
FC8779-0808-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Hose Barb | Stainless Steel | Pack of 10
FC8779-0808-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Hose Barb | Stainless Steel

FC8779-0808-333 Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -08 Female 37° JIC Swivel x -08 Hose Barb | Stainless Steel | Pack of 10

$415.80 - $415.80
$415.80
$415.80 - $415.80
$415.80

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female 37° JIC Swivel - Straight - Stainless Steel

FC Series

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FC8779-0808-333 Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 1/2in Hose Barb
Material(s): Stainless Steel
Special Properties: Swivel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:
Component Part Numbers
Complete Fitting
Part Number		 Nipple Assembly
Part Number		 Socket
Part Number		 Thread Hose Size A D EØ Hex 1

 Hex 2
FC9779-0404-333 FC8779-0404-333 FC3596-04C 7/16-20 -04 1.55" 0.96" 0.12" 9/16" 7/16"
- FC8779-0505-333 FC3443-04C 1/2-20 -05 1.50" 1.01" 0.19" 5/8" 1/2"
FC9779-0606-333 FC8779-0606-333 FC3443-05C 9/16-18 -06 1.60" 1.11" 0.25" 11/16" 9/16"
FC9779-0808-333 FC8779-0808-333 FC3596-08C 3/4-16 -08 2.10" 1.21" 0.34" 7/8" 11/16"
FC9779-1010-333 FC8779-1010-333 FC3443-08C 7/8-14 -10 2.21" 1.32" 0.44" 1" 13/16"
FC9779-1212-333 FC8779-1212-333 FC3596-12C 1-5/16-12 -12 2.29" 1.41" 0.56" 1-1/4" 1"
FC9779-1616-333 FC8779-1616-333 FC3596-16C 1-5/16-12 -16" 2.52" 1.64" 0.80" 1-1/2" 1-1/4"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
