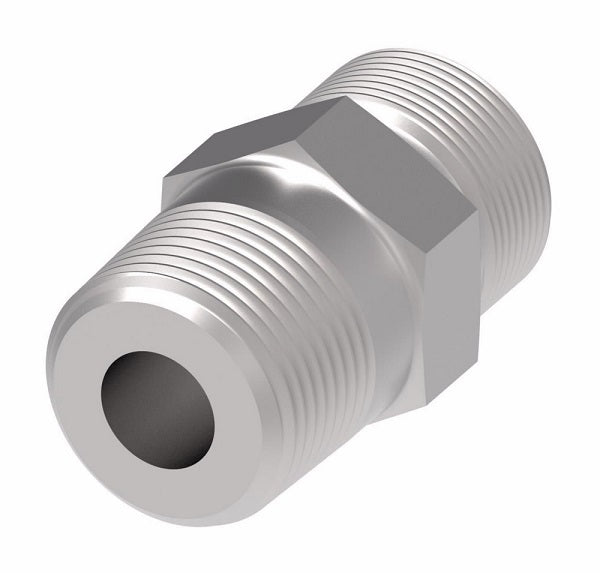

FF2031T1008S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -10 Male O-Ring Face Seal x -10 Male NPTF | Steel
FF2031T1008S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -10 Male O-Ring Face Seal x -10 Male NPTF | Steel
FF2031T1008S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -10 Male O-Ring Face Seal x -10 Male NPTF | Steel
FF2031T1008S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -10 Male O-Ring Face Seal x -10 Male NPTF | Steel

FF2031T1008S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -10 Male O-Ring Face Seal x -10 Male NPTF | Steel

$16.39 - $16.39
$16.39
$16.39 - $16.39
$16.39

Aeroquip® by Danfoss
ORS/Male NPTF Adapter
Male O-Ring Face Seal x Male NPTF
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2031T1008S Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/8in Male O-Ring Face Seal, 5/8in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 520102
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A Hex 1
FF2031T0402S 0.25" 9/16-18 1/8-27 1.03" 0.62"
FF2031T0404S 0.25" 9/16-18 1/4-18 1.24" 0.62"
FF2031T0406S 0.25" 9/16-18 3/8-18 1.24" 0.75"
FF2031T0408S 0.25" 9/16-18 1/2-14 1.49" 0.88"
FF2031T0602S 0.38" 11/16-16 1/8-27 1.12" 0.75"
FF2031T0604S 0.38" 11/16-16 1/4-18 1.30" 0.75"
FF2031T0606S 0.38" 11/16-16 3/8-18 1.30" 0.75"
FF2031T0608S 0.38" 11/16-16 1/2-14 1.55" 0.88"
FF2031T0804S/a> 0.50" 13/16-16 1/4-18 1.36" 0.88"
FF2031T0806S 0.50" 13/16-16 3/8-18 1.36" 0.88"
FF2031T0808S 0.50" 13/16-16 1/2-14 1.61" 0.88"
FF2031T0812S 0.50" 13/16-16 3/4-14 1.68" 1.06"
FF2031T1008S 0.63" 1-14 1/2-14 1.72" 1.06"
FF2031T1012S 0.63" 1-14 3/4-14 1.78" 1.06"
FF2031T1208S 0.75" 1-3/16-12 1/2-14 1.84" 1.25"
FF2031T1212S 0.75" 1-3/16-12 3/4-14 1.84" 1.25"
FF2031T1216S 0.75" 1-3/16-12 1-11-1/2 2.03" 1.38"
FF2031T1612S 1.00" 1-7/16-12 3/4-14 1.86" 1.50"
FF2031T1616S 1.00" 1-7/16-12 1-11-1/2 2.05" 1.50"
FF2031T1620S 1.00" 1-7/16-12 1-1/4-11-1/2 2.16" 1.69"
FF2031T2016S 1.25" 1-11/16-12 1-11-1/2 2.13" 1.75"
FF2031T2020S 1.25" 1-11/16-12 1-1/4-11-1/2 2.16" 1.75"
FF2031T2424S 1.50" 2-12 1-1/2-11-1/2 2.26" 2.12"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
