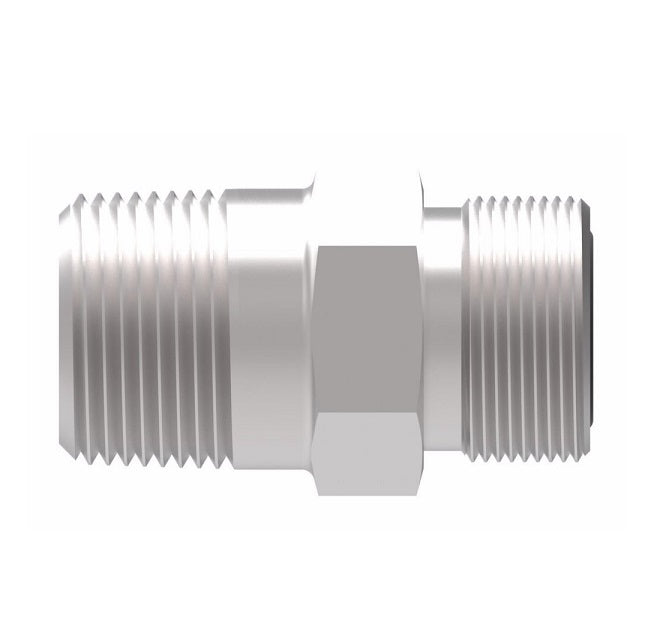

FF2031T1012S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -10 Male O-Ring Face Seal x -12 Male NPTF | Steel

FF2031T1012S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -10 Male O-Ring Face Seal x -12 Male NPTF | Steel

Name: FF2031T1012S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -10 Male O-Ring Face Seal x -12 Male NPTF | Steel
Brand: Danfoss/Eaton
SKU: FF2031T1012S Danfoss
Price: 25.26 USD
Availability: InStock

$25.26 - $25.26

$25.26

$25.26 - $25.26

$25.26

Aeroquip® by Danfoss
ORS/Male NPTF Adapter
Male O-Ring Face Seal x Male NPTF
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF2031T1012S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male O-Ring Face Seal, 3/4in Male NPTF
Material(s):	Steel

Specifications:
Ref. SAE 520102
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	Hex 1
FF2031T0402S	0.25"	9/16-18	1/8-27	1.03"	0.62"
FF2031T0404S	0.25"	9/16-18	1/4-18	1.24"	0.62"
FF2031T0406S	0.25"	9/16-18	3/8-18	1.24"	0.75"
FF2031T0408S	0.25"	9/16-18	1/2-14	1.49"	0.88"
FF2031T0602S	0.38"	11/16-16	1/8-27	1.12"	0.75"
FF2031T0604S	0.38"	11/16-16	1/4-18	1.30"	0.75"
FF2031T0606S	0.38"	11/16-16	3/8-18	1.30"	0.75"
FF2031T0608S	0.38"	11/16-16	1/2-14	1.55"	0.88"
FF2031T0804S/a>	0.50"	13/16-16	1/4-18	1.36"	0.88"
FF2031T0806S	0.50"	13/16-16	3/8-18	1.36"	0.88"
FF2031T0808S	0.50"	13/16-16	1/2-14	1.61"	0.88"
FF2031T0812S	0.50"	13/16-16	3/4-14	1.68"	1.06"
FF2031T1008S	0.63"	1-14	1/2-14	1.72"	1.06"
FF2031T1012S	0.63"	1-14	3/4-14	1.78"	1.06"
FF2031T1208S	0.75"	1-3/16-12	1/2-14	1.84"	1.25"
FF2031T1212S	0.75"	1-3/16-12	3/4-14	1.84"	1.25"
FF2031T1216S	0.75"	1-3/16-12	1-11-1/2	2.03"	1.38"
FF2031T1612S	1.00"	1-7/16-12	3/4-14	1.86"	1.50"
FF2031T1616S	1.00"	1-7/16-12	1-11-1/2	2.05"	1.50"
FF2031T1620S	1.00"	1-7/16-12	1-1/4-11-1/2	2.16"	1.69"
FF2031T2016S	1.25"	1-11/16-12	1-11-1/2	2.13"	1.75"
FF2031T2020S	1.25"	1-11/16-12	1-1/4-11-1/2	2.16"	1.75"
FF2031T2424S	1.50"	2-12	1-1/2-11-1/2	2.26"	2.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
