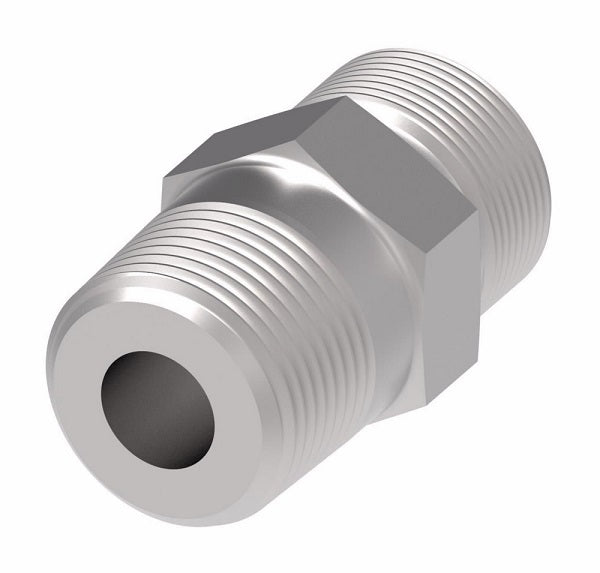

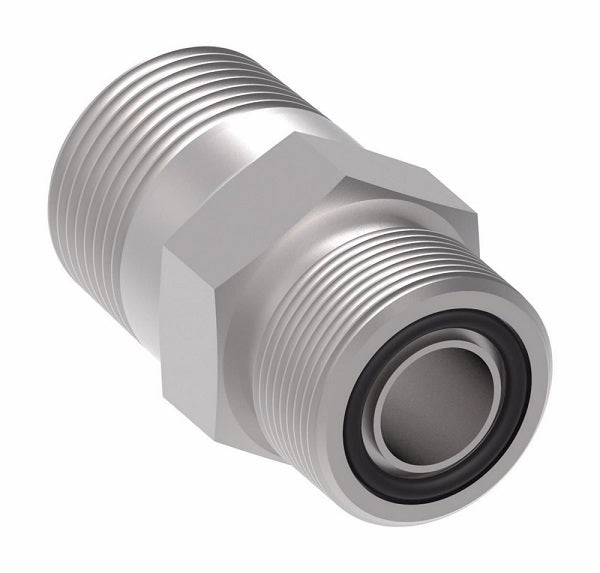

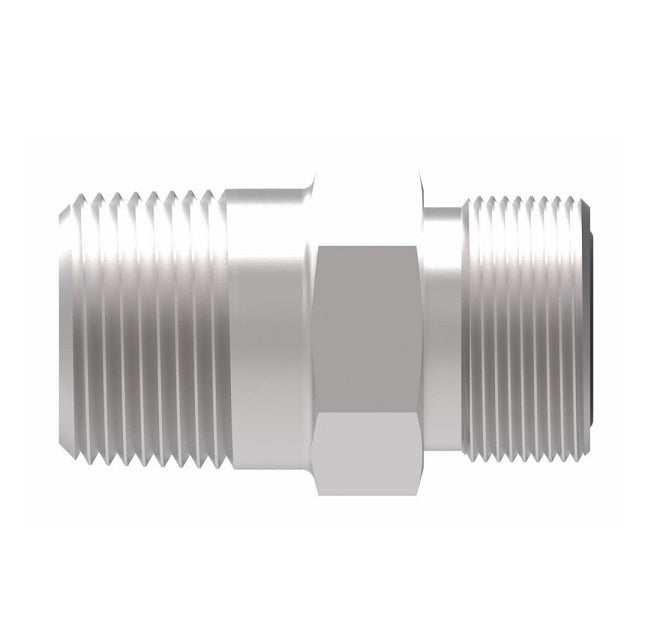

FF2031T1212S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -12 Male O-Ring Face Seal x -12 Male NPTF | Steel

FF2031T1212S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -12 Male O-Ring Face Seal x -12 Male NPTF | Steel

Name: FF2031T1212S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -12 Male O-Ring Face Seal x -12 Male NPTF | Steel
Brand: Danfoss/Eaton
SKU: FF2031T1212S Danfoss
Price: 5.58 USD
Availability: InStock

$5.58 - $5.58

$5.58

$5.58 - $5.58

$5.58

Aeroquip® by Danfoss
ORS/Male NPTF Adapter
Male O-Ring Face Seal x Male NPTF
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF2031T1212S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male O-Ring Face Seal, 3/4in Male NPTF
Material(s):	Steel

Specifications:
Ref. SAE 520102
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	Hex 1
FF2031T0402S	0.25"	9/16-18	1/8-27	1.03"	0.62"
FF2031T0404S	0.25"	9/16-18	1/4-18	1.24"	0.62"
FF2031T0406S	0.25"	9/16-18	3/8-18	1.24"	0.75"
FF2031T0408S	0.25"	9/16-18	1/2-14	1.49"	0.88"
FF2031T0602S	0.38"	11/16-16	1/8-27	1.12"	0.75"
FF2031T0604S	0.38"	11/16-16	1/4-18	1.30"	0.75"
FF2031T0606S	0.38"	11/16-16	3/8-18	1.30"	0.75"
FF2031T0608S	0.38"	11/16-16	1/2-14	1.55"	0.88"
FF2031T0804S/a>	0.50"	13/16-16	1/4-18	1.36"	0.88"
FF2031T0806S	0.50"	13/16-16	3/8-18	1.36"	0.88"
FF2031T0808S	0.50"	13/16-16	1/2-14	1.61"	0.88"
FF2031T0812S	0.50"	13/16-16	3/4-14	1.68"	1.06"
FF2031T1008S	0.63"	1-14	1/2-14	1.72"	1.06"
FF2031T1012S	0.63"	1-14	3/4-14	1.78"	1.06"
FF2031T1208S	0.75"	1-3/16-12	1/2-14	1.84"	1.25"
FF2031T1212S	0.75"	1-3/16-12	3/4-14	1.84"	1.25"
FF2031T1216S	0.75"	1-3/16-12	1-11-1/2	2.03"	1.38"
FF2031T1612S	1.00"	1-7/16-12	3/4-14	1.86"	1.50"
FF2031T1616S	1.00"	1-7/16-12	1-11-1/2	2.05"	1.50"
FF2031T1620S	1.00"	1-7/16-12	1-1/4-11-1/2	2.16"	1.69"
FF2031T2016S	1.25"	1-11/16-12	1-11-1/2	2.13"	1.75"
FF2031T2020S	1.25"	1-11/16-12	1-1/4-11-1/2	2.16"	1.75"
FF2031T2424S	1.50"	2-12	1-1/2-11-1/2	2.26"	2.12"
