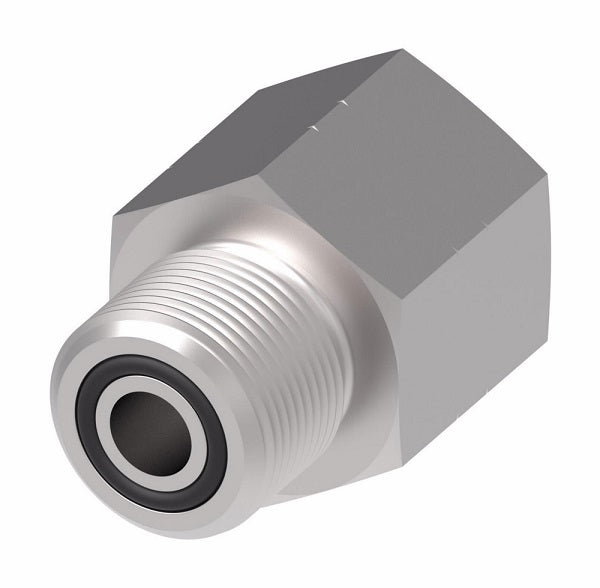

FF2281T0812S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -08 Male O-Ring Face Seal x -12 Female O-Ring Face Seal | Steel
FF2281T0812S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -08 Male O-Ring Face Seal x -12 Female O-Ring Face Seal | Steel
FF2281T0812S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -08 Male O-Ring Face Seal x -12 Female O-Ring Face Seal | Steel
FF2281T0812S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -08 Male O-Ring Face Seal x -12 Female O-Ring Face Seal | Steel

FF2281T0812S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -08 Male O-Ring Face Seal x -12 Female O-Ring Face Seal | Steel

$21.28 - $21.28
$21.28
$21.28 - $21.28
$21.28

Aeroquip® by Danfoss
ORS/ORS Reducer Adapter
Male O-Ring Face Seal x Female O-Ring Face Seal
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2281T0812S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Face Seal, 3/4in Female O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520123
Construction:
  • Buna-N O-Rings are standard.
Steel Part Number Tube OD Thread T1 Thread T2 A Hex 1
FF2281T0406S 0.38" 9/16-18 11/16-16 0.77" 0.81"
FF2281T0408S 0.50" 9/16-18 13/16-16 0.86" 0.94"
FF2281T0410S 0.63" 9/16-18 1-14 0.90" 1.12"
FF2281T0412S 0.75" 9/16-18 1-3/16-12 0.98" 1.38"
FF2281T0608S 0.50" 11/16-16 13/16-16 0.88" 0.94"
FF2281T0610S 0.63" 11/16-16 1-14 0.95" 1.12"
FF2281T0612S 0.75" 11/16-16 1-3/16-12 1.03" 1.38"
FF2281T0810S 0.63" 13/16-16 1-14 1.02" 1.12"
FF2281T0812S 0.75" 13/16-16 1-3/16-12 1.10" 1.38"
FF2281T0816S 1.00" 13/16-16 1-7/16-12 1.15" 1.62"
FF2281T1012S - - - - -
FF2281T1216S 1.00" 1-3/16-12 1-7/16-12 1.34" 1.62"
FF2281T1220S 1.25" 1-3/16-12 1-11/16-12 1.32" 1.88"
FF2281T1224S 1.50" 1-3/16-12 2-12 1.32" 2.25"
FF2281T1620S 1.25" 1-7/16-12 1-11/16-12 2.69" 1.88"
FF2281T1624S 1.50" 1-7/16-12 2-12 1.34" 2.25"
