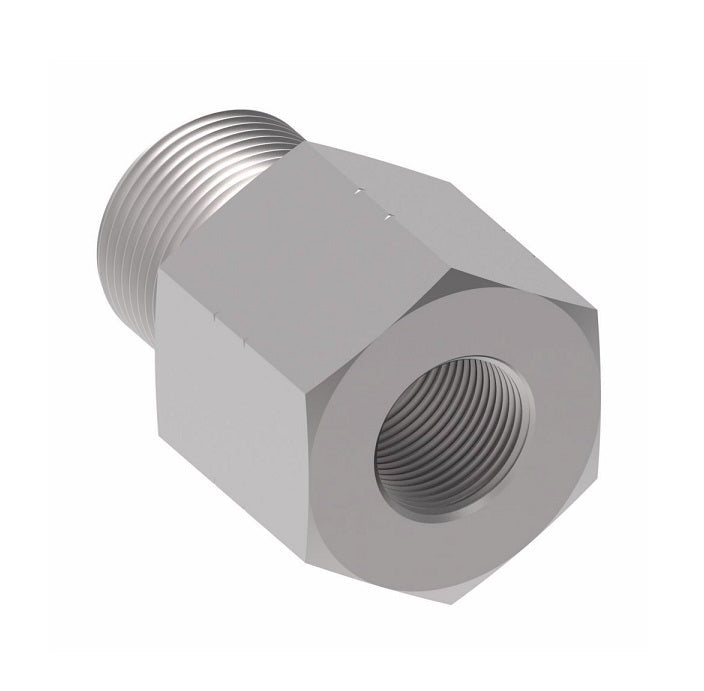

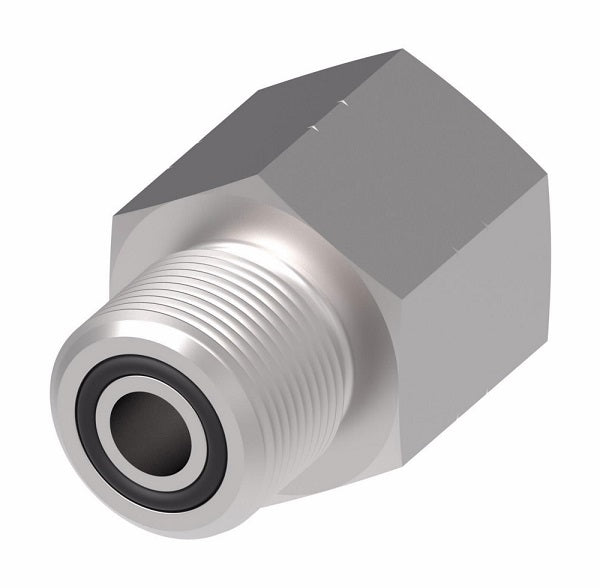

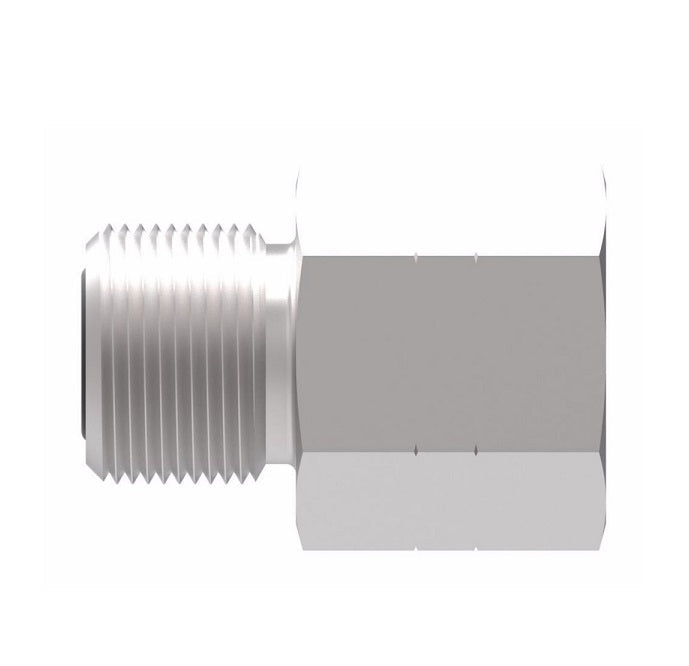

FF2281T1216S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -12 Male O-Ring Face Seal x -16 Female O-Ring Face Seal | Steel

FF2281T1216S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -12 Male O-Ring Face Seal x -16 Female O-Ring Face Seal | Steel

$28.16 - $28.16
$28.16
$28.16 - $28.16
$28.16

Aeroquip® by Danfoss
ORS/ORS Reducer Adapter
Male O-Ring Face Seal x Female O-Ring Face Seal
Straight

(Formerly Eaton Aeroquip)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FF2281T1216S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male O-Ring Face Seal, 1in Female O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520123
Construction:
  • Buna-N O-Rings are standard.
Steel Part Number Tube OD Thread T1 Thread T2 A Hex 1
FF2281T0406S 0.38" 9/16-18 11/16-16 0.77" 0.81"
FF2281T0408S 0.50" 9/16-18 13/16-16 0.86" 0.94"
FF2281T0410S 0.63" 9/16-18 1-14 0.90" 1.12"
FF2281T0412S 0.75" 9/16-18 1-3/16-12 0.98" 1.38"
FF2281T0608S 0.50" 11/16-16 13/16-16 0.88" 0.94"
FF2281T0610S 0.63" 11/16-16 1-14 0.95" 1.12"
FF2281T0612S 0.75" 11/16-16 1-3/16-12 1.03" 1.38"
FF2281T0810S 0.63" 13/16-16 1-14 1.02" 1.12"
FF2281T0812S 0.75" 13/16-16 1-3/16-12 1.10" 1.38"
FF2281T0816S 1.00" 13/16-16 1-7/16-12 1.15" 1.62"
FF2281T1012S - - - - -
FF2281T1216S 1.00" 1-3/16-12 1-7/16-12 1.34" 1.62"
FF2281T1220S 1.25" 1-3/16-12 1-11/16-12 1.32" 1.88"
FF2281T1224S 1.50" 1-3/16-12 2-12 1.32" 2.25"
FF2281T1620S 1.25" 1-7/16-12 1-11/16-12 2.69" 1.88"
FF2281T1624S 1.50" 1-7/16-12 2-12 1.34" 2.25"
