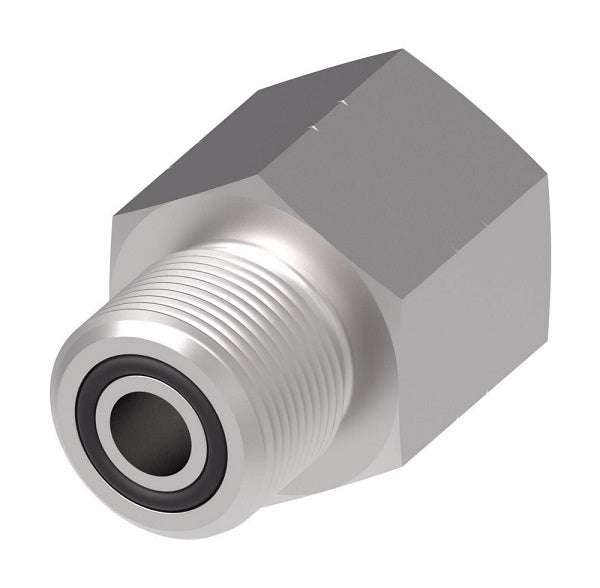

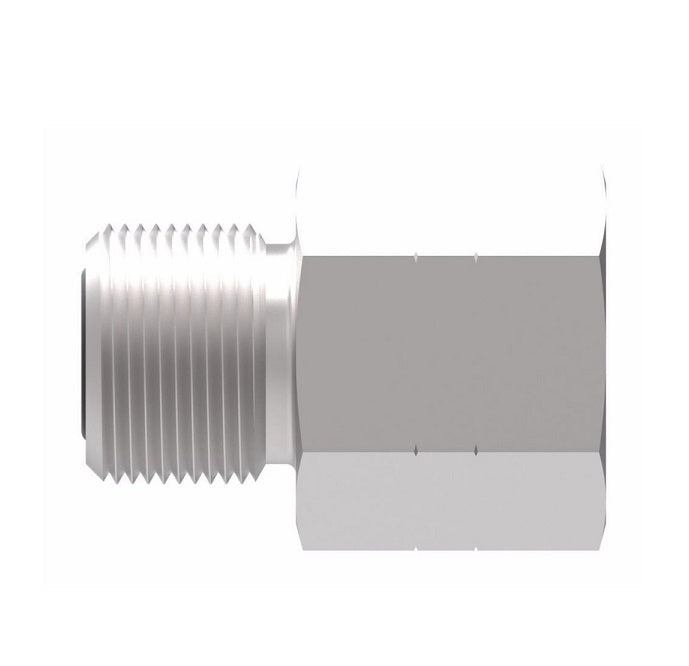

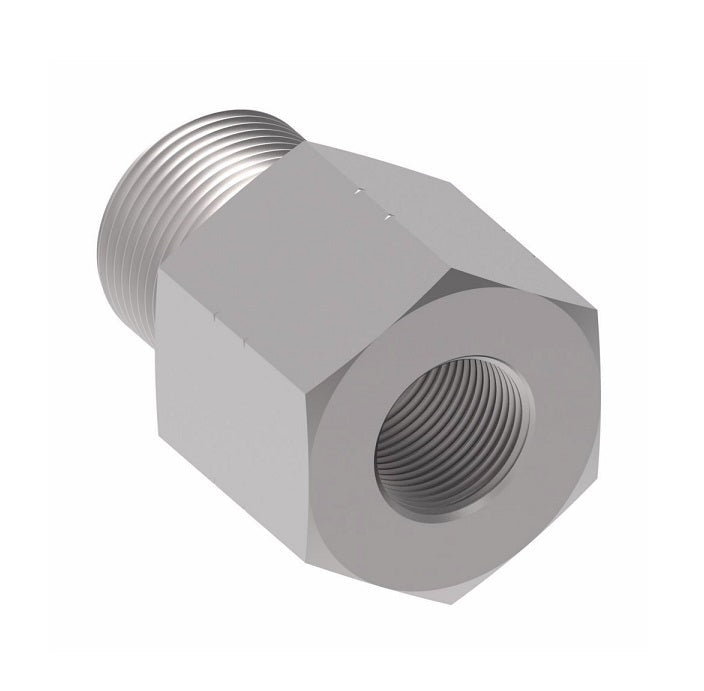

FF2281T0816S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -08 Male O-Ring Face Seal x -16 Female O-Ring Face Seal | Steel
FF2281T0816S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -08 Male O-Ring Face Seal x -16 Female O-Ring Face Seal | Steel
FF2281T0816S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -08 Male O-Ring Face Seal x -16 Female O-Ring Face Seal | Steel
FF2281T0816S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -08 Male O-Ring Face Seal x -16 Female O-Ring Face Seal | Steel

FF2281T0816S Aeroquip by Danfoss | ORS/ORS Reducer Adapter | -08 Male O-Ring Face Seal x -16 Female O-Ring Face Seal | Steel

$18.48 - $18.48
$18.48
$18.48 - $18.48
$18.48

Aeroquip® by Danfoss
ORS/ORS Reducer Adapter
Male O-Ring Face Seal x Female O-Ring Face Seal
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2281T0816S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Face Seal, 1in Female O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520123
Construction:
  • Buna-N O-Rings are standard.
Steel Part Number Tube OD Thread T1 Thread T2 A Hex 1
FF2281T0406S 0.38" 9/16-18 11/16-16 0.77" 0.81"
FF2281T0408S 0.50" 9/16-18 13/16-16 0.86" 0.94"
FF2281T0410S 0.63" 9/16-18 1-14 0.90" 1.12"
FF2281T0412S 0.75" 9/16-18 1-3/16-12 0.98" 1.38"
FF2281T0608S 0.50" 11/16-16 13/16-16 0.88" 0.94"
FF2281T0610S 0.63" 11/16-16 1-14 0.95" 1.12"
FF2281T0612S 0.75" 11/16-16 1-3/16-12 1.03" 1.38"
FF2281T0810S 0.63" 13/16-16 1-14 1.02" 1.12"
FF2281T0812S 0.75" 13/16-16 1-3/16-12 1.10" 1.38"
FF2281T0816S 1.00" 13/16-16 1-7/16-12 1.15" 1.62"
FF2281T1012S - - - - -
FF2281T1216S 1.00" 1-3/16-12 1-7/16-12 1.34" 1.62"
FF2281T1220S 1.25" 1-3/16-12 1-11/16-12 1.32" 1.88"
FF2281T1224S 1.50" 1-3/16-12 2-12 1.32" 2.25"
FF2281T1620S 1.25" 1-7/16-12 1-11/16-12 2.69" 1.88"
FF2281T1624S 1.50" 1-7/16-12 2-12 1.34" 2.25"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
