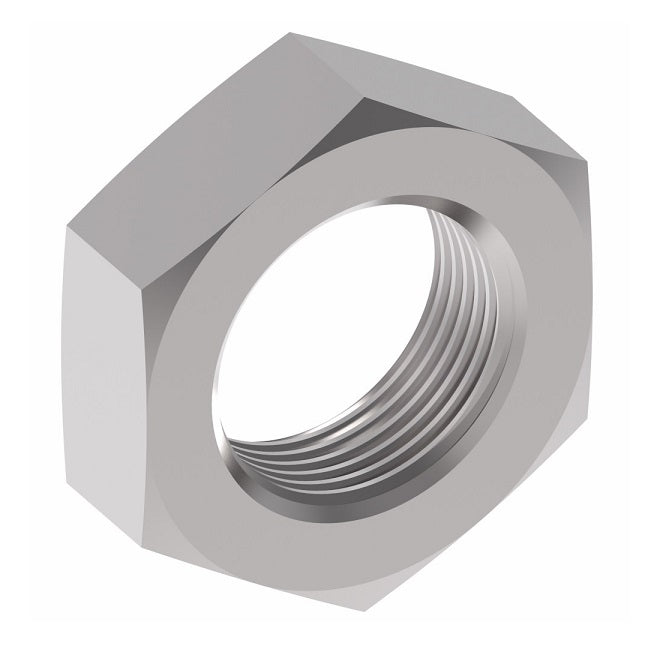

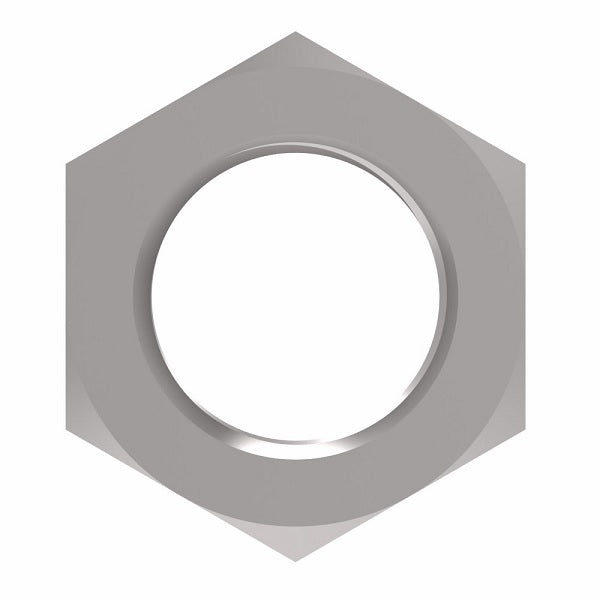

FF9768-04S Aeroquip by Danfoss | O-Ring Face Seal (ORS) Bulkhead Nut | -04 Size | Steel
FF9768-04S Aeroquip by Danfoss | O-Ring Face Seal (ORS) Bulkhead Nut | -04 Size | Steel
FF9768-04S Aeroquip by Danfoss | O-Ring Face Seal (ORS) Bulkhead Nut | -04 Size | Steel

FF9768-04S Aeroquip by Danfoss | O-Ring Face Seal (ORS) Bulkhead Nut | -04 Size | Steel

$1.89 - $1.89
$1.89
$1.89 - $1.89
$1.89

Aeroquip® by Danfoss
O-Ring Face Seal (ORS) Bulkhead Nut

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF9768-04S Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Specifications:
  • Ref. SAE 520118
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Brass
Part Number 		Tube OD Thread T1 A B
FF9768-04S - 0.25" 9/16-18 0.81" 0.27"
FF9768-06S - 0.38" 11/16-16 1.00" 0.31"
FF9768-08S - 0.50" 13/16-16 1.12" 0.35"
FF9768-10S - 0.63" 1-14 1.31" 0.41"
FF9768-12S FF9768-12B 0.75" 1-3/16-12 1.50" 0.41"
FF9768-16S - 1.00" 1-7/16-12 1.75" 0.41"
FF9768-20S - 1.25" 1-11/16-12 2.00" 0.41"
FF9768-24S - 1.50" 2-12 2.38" 0.41"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
