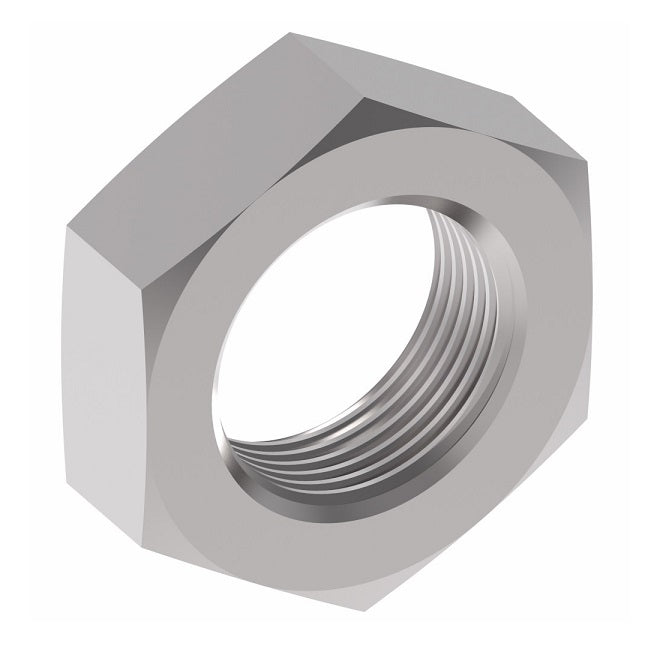

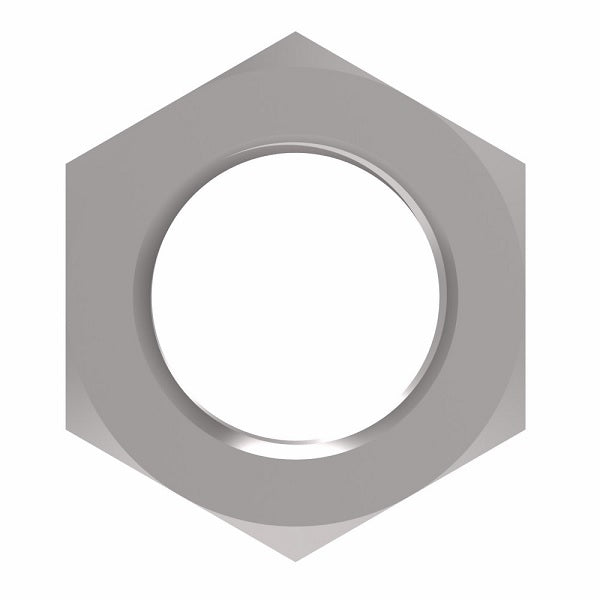

FF9768-08S Aeroquip by Danfoss | O-Ring Face Seal (ORS) Bulkhead Nut | -08 Size | Steel

FF9768-08S Aeroquip by Danfoss | O-Ring Face Seal (ORS) Bulkhead Nut | -08 Size | Steel

$1.55 - $1.55
$1.55
$1.55 - $1.55
$1.55

Aeroquip® by Danfoss
O-Ring Face Seal (ORS) Bulkhead Nut

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF9768-08S Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Specifications:
  • Ref. SAE 520118
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Brass
Part Number 		Tube OD Thread T1 A B
FF9768-04S - 0.25" 9/16-18 0.81" 0.27"
FF9768-06S - 0.38" 11/16-16 1.00" 0.31"
FF9768-08S - 0.50" 13/16-16 1.12" 0.35"
FF9768-10S - 0.63" 1-14 1.31" 0.41"
FF9768-12S FF9768-12B 0.75" 1-3/16-12 1.50" 0.41"
FF9768-16S - 1.00" 1-7/16-12 1.75" 0.41"
FF9768-20S - 1.25" 1-11/16-12 2.00" 0.41"
FF9768-24S - 1.50" 2-12 2.38" 0.41"
