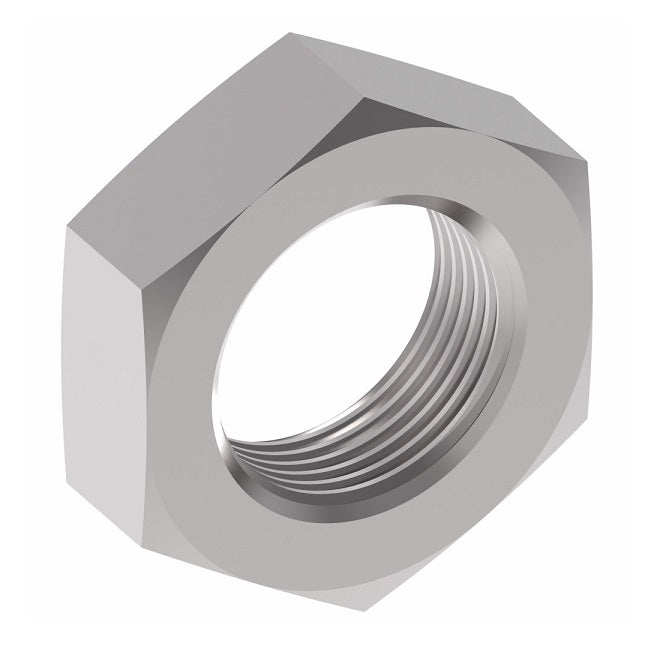

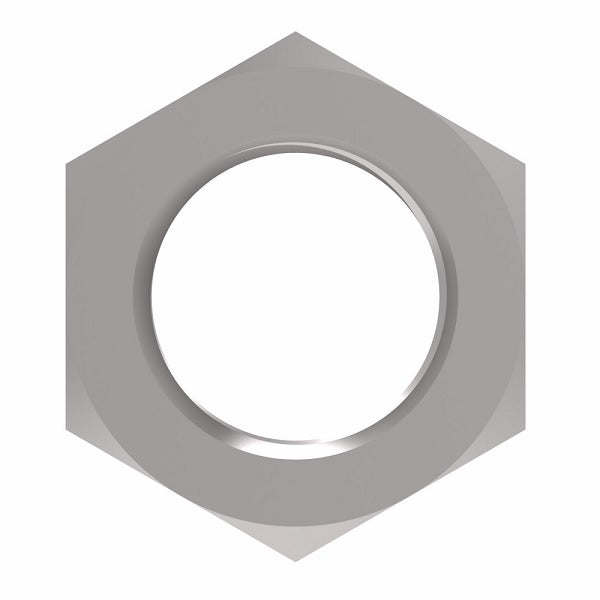

FF9768-06S Aeroquip by Danfoss | O-Ring Face Seal (ORS) Bulkhead Nut | -06 Size | Steel

Name: FF9768-06S Aeroquip by Danfoss | O-Ring Face Seal (ORS) Bulkhead Nut | -06 Size | Steel
Brand: Danfoss/Eaton
SKU: FF9768-06S Danfoss
Price: 1.62 USD
Availability: InStock

$1.62 - $1.62

$1.62

$1.62 - $1.62

$1.62

Aeroquip® by Danfoss
O-Ring Face Seal (ORS) Bulkhead Nut

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF9768-06S Danfoss
Shape (Orientation):	No Orientation
Material(s):	Steel

Specifications:
Ref. SAE 520118
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Brass Part Number	Tube OD	Thread T1	A	B
FF9768-04S	-	0.25"	9/16-18	0.81"	0.27"
FF9768-06S	-	0.38"	11/16-16	1.00"	0.31"
FF9768-08S	-	0.50"	13/16-16	1.12"	0.35"
FF9768-10S	-	0.63"	1-14	1.31"	0.41"
FF9768-12S	FF9768-12B	0.75"	1-3/16-12	1.50"	0.41"
FF9768-16S	-	1.00"	1-7/16-12	1.75"	0.41"
FF9768-20S	-	1.25"	1-11/16-12	2.00"	0.41"
FF9768-24S	-	1.50"	2-12	2.38"	0.41"
