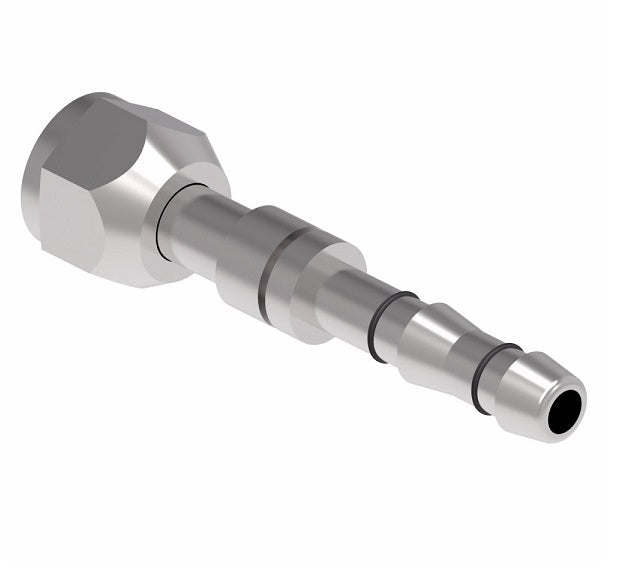

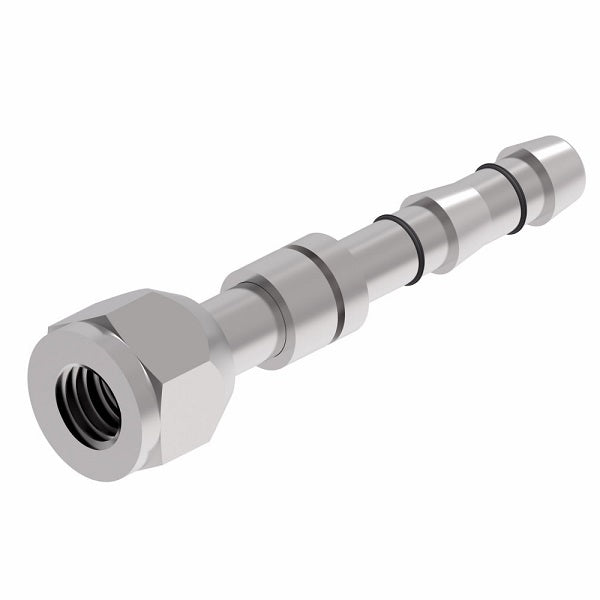

FJ5984-1010S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -10 Hose Barb | Steel
FJ5984-1010S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -10 Hose Barb | Steel
FJ5984-1010S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -10 Hose Barb | Steel
FJ5984-1010S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -10 Hose Barb | Steel

FJ5984-1010S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -10 Hose Barb | Steel

$30.13 - $30.13
$30.13
$30.13 - $30.13
$30.13

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Short Pilot) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ5984-1010S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 5/8in Female O-Ring Short Pilot, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ5984-0606S 5/8-18 -06 3.14" 1.62" 0.75" FF14171 22546-11 FF90178-11
FJ5984-0608S 5/8-18 -08 3.16" 1.62" 0.75" FF14172 22546-11 FF90178-11
FJ5984-0808S 3/4-16 -08 3.56" 2.02" 0.88" FF14172 22546-13 FF90178-13
FJ5984-0810S 3/4-16 -10 3.57" 2.02" 0.88" FF14173 22546-13 FF90178-13
FJ5984-1008S 7/8-14 -08 3.62" 2.08" 0.88" FF14172 22546-15 FF90178-15
FJ5984-1010S 7/8-14 -10 3.63" 2.08" 1.06" FF14173 22546-15 FF90178-15
FJ5984-1012S 7/8-14 -12 3.66" 2.08" 1.06" FF14174 22546-15 FF90178-15
FJ5984-1016S 7/8-14 -16 3.76" 2.08" 1.06" FF14401 22546-15 FF90178-15
FJ5984-1210S 1-1/16-14 -10 4.25" 2.62" 1.25" FF14173 22546-17 FF90178-17
FJ5984-1212S 1-1/16-14 -12 4.25" 2.67" 1.25" FF14174 22546-17 FF90178-17
FJ5984-1216S 1-1/16-14 -16 4.35" 2.67" 1.25" FF14401 22546-17 FF90178-17
