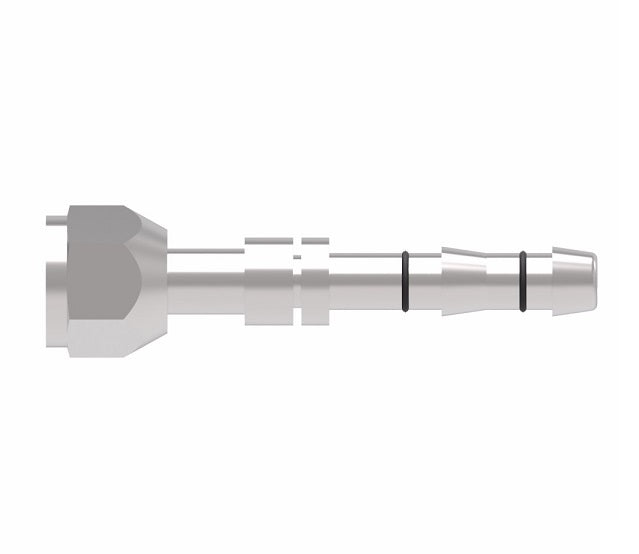

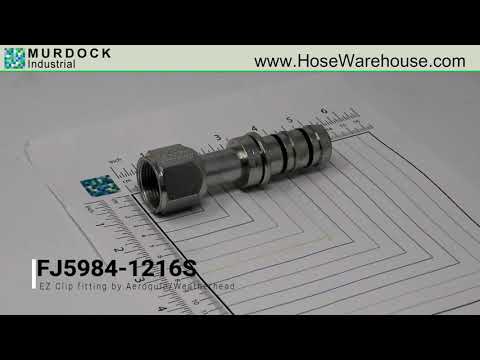

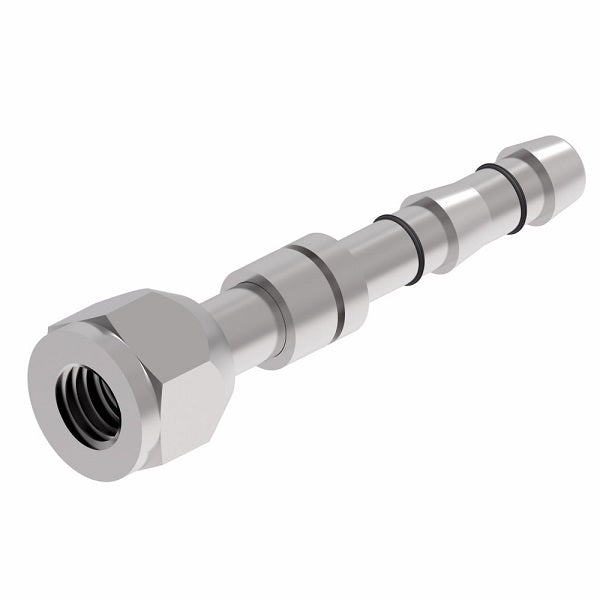

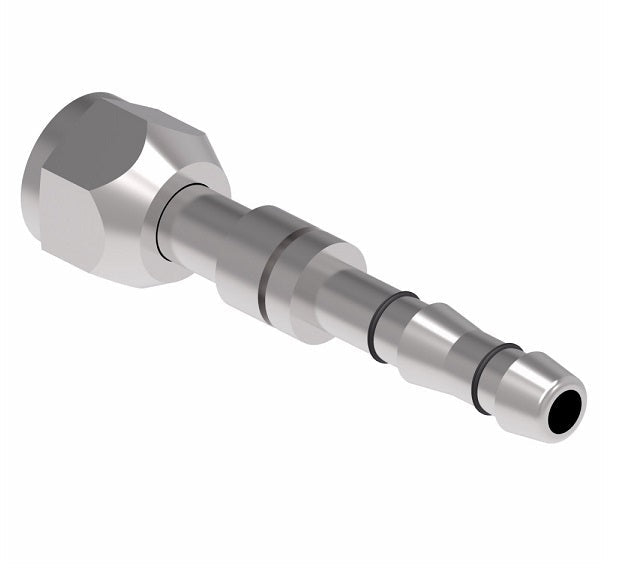

FJ5984-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel
FJ5984-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel
FJ5984-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel
FJ5984-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel

FJ5984-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel

$34.80 - $34.80
$34.80
$34.80 - $34.80
$34.80

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Short Pilot) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ5984-1216S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 3/4in Female O-Ring Short Pilot, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ5984-0606S 5/8-18 -06 3.14" 1.62" 0.75" FF14171 22546-11 FF90178-11
FJ5984-0608S 5/8-18 -08 3.16" 1.62" 0.75" FF14172 22546-11 FF90178-11
FJ5984-0808S 3/4-16 -08 3.56" 2.02" 0.88" FF14172 22546-13 FF90178-13
FJ5984-0810S 3/4-16 -10 3.57" 2.02" 0.88" FF14173 22546-13 FF90178-13
FJ5984-1008S 7/8-14 -08 3.62" 2.08" 0.88" FF14172 22546-15 FF90178-15
FJ5984-1010S 7/8-14 -10 3.63" 2.08" 1.06" FF14173 22546-15 FF90178-15
FJ5984-1012S 7/8-14 -12 3.66" 2.08" 1.06" FF14174 22546-15 FF90178-15
FJ5984-1016S 7/8-14 -16 3.76" 2.08" 1.06" FF14401 22546-15 FF90178-15
FJ5984-1210S 1-1/16-14 -10 4.25" 2.62" 1.25" FF14173 22546-17 FF90178-17
FJ5984-1212S 1-1/16-14 -12 4.25" 2.67" 1.25" FF14174 22546-17 FF90178-17
FJ5984-1216S 1-1/16-14 -16 4.35" 2.67" 1.25" FF14401 22546-17 FF90178-17
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
