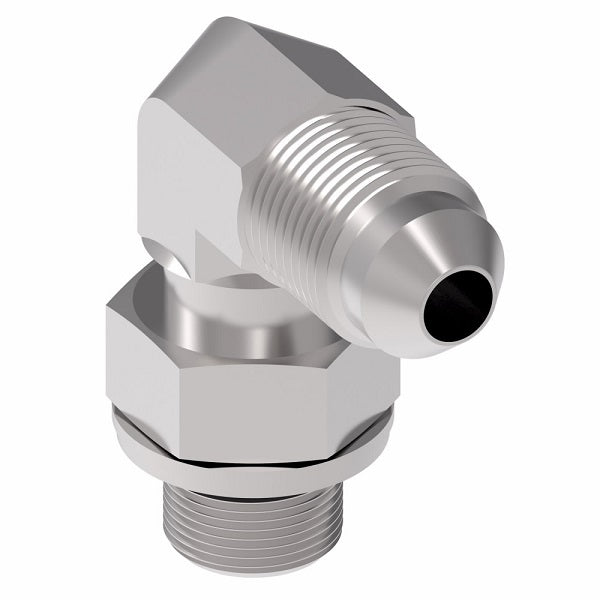

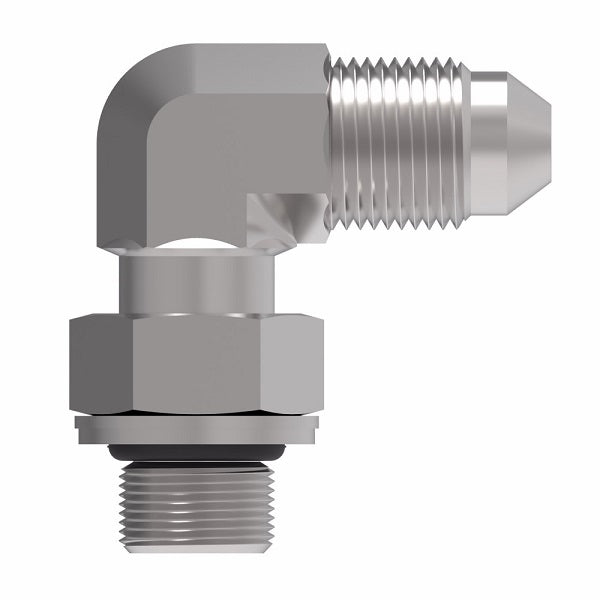

GG308-NP04-10 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -04 Male 37° JIC x M10 Male Metric | Steel

GG308-NP04-10 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -04 Male 37° JIC x M10 Male Metric | Steel

$48.93 - $48.93
$48.93
$48.93 - $48.93
$48.93

Aeroquip® by Danfoss
Male 37° JIC/Metric (Adj.) Male Adapter
Male 37° JIC x Male Metric
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: GG308-NP04-10 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male JIC, 10mm Male Metric
Material(s): Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A RØ
GG308-NP04-10 0.25" 7/16-20 M10 x 1.0 0.89" 1.02"
GG308-NP04-12 0.25" 7/16-20 M12 x 1.5 1.06" 1.24"
GG308-NP06-14 - 9/16-18 M14 x 1.5 - -
GG308-NP06-16 0.38" 9/16-18 M16 x 1.5 1.12" 1.44"
GG308-NP08-16 0.50" 3/4-16 M16 x 1.5 1.24" 1.44"
GG308-NP08-18 0.50" 3/4-16 M18 x 1.5 1.24" 1.44"
GG308-NP08-22 - - - - -
GG308-NP10-18 0.63" 7/8-14 M18 x 1.5 1.44" 1.56"
GG308-NP10-20 0.63" 7/8-14 M20 x 1.5 1.44" 1.69"
GG308-NP10-22 0.63" 7/8-14 M22 x 1.5 1.44" 1.69"
GG308-NP12-22 0.75" 1-1/16-12 M22 x 1.5 1.65" 1.79"
GG308-NP12-27 0.75" 1-1/16-12 M27 x 2.0 1.65" 1.93"
GG308-NP16-33 - - - - -
