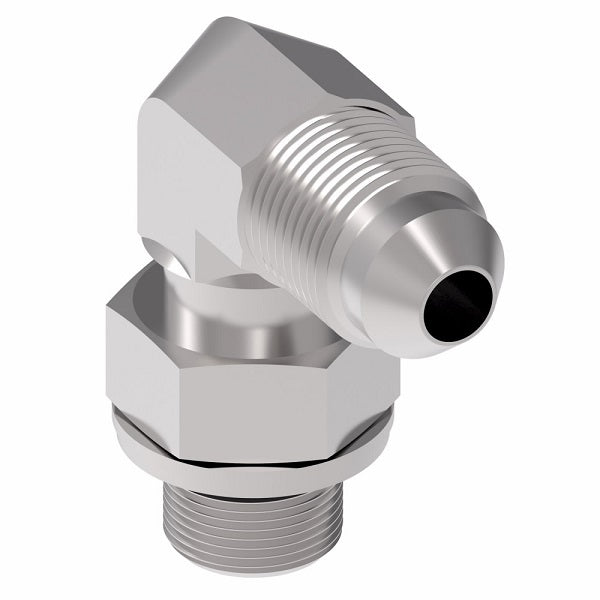

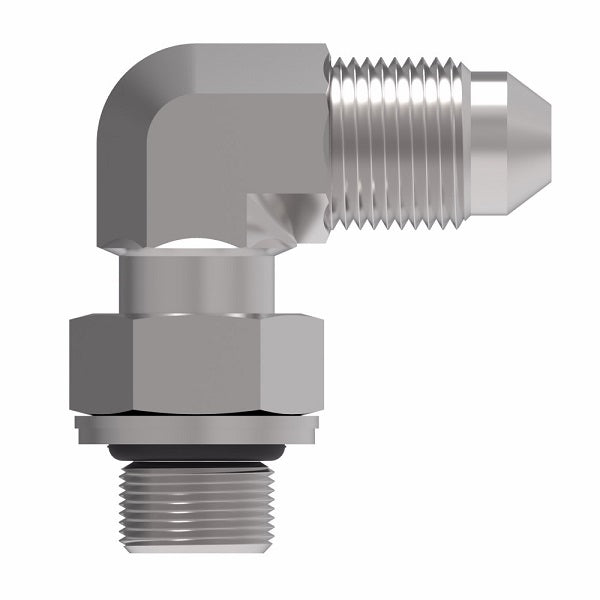

GG308-NP10-18 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -10 Male 37° JIC x M18 Male Metric | Steel

GG308-NP10-18 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -10 Male 37° JIC x M18 Male Metric | Steel

Name: GG308-NP10-18 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -10 Male 37° JIC x M18 Male Metric | Steel
Brand: Danfoss/Eaton
SKU: GG308-NP10-18 Danfoss
Price: 61.09 USD
Availability: InStock

$61.09 - $61.09

$61.09

$61.09 - $61.09

$61.09

Aeroquip® by Danfoss
Male 37° JIC/Metric (Adj.) Male Adapter
Male 37° JIC x Male Metric
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: GG308-NP10-18 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Male JIC, 18mm Male Metric
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A	RØ
GG308-NP04-10	0.25"	7/16-20	M10 x 1.0	0.89"	1.02"
GG308-NP04-12	0.25"	7/16-20	M12 x 1.5	1.06"	1.24"
GG308-NP06-14	-	9/16-18	M14 x 1.5	-	-
GG308-NP06-16	0.38"	9/16-18	M16 x 1.5	1.12"	1.44"
GG308-NP08-16	0.50"	3/4-16	M16 x 1.5	1.24"	1.44"
GG308-NP08-18	0.50"	3/4-16	M18 x 1.5	1.24"	1.44"
GG308-NP08-22	-	-	-	-	-
GG308-NP10-18	0.63"	7/8-14	M18 x 1.5	1.44"	1.56"
GG308-NP10-20	0.63"	7/8-14	M20 x 1.5	1.44"	1.69"
GG308-NP10-22	0.63"	7/8-14	M22 x 1.5	1.44"	1.69"
GG308-NP12-22	0.75"	1-1/16-12	M22 x 1.5	1.65"	1.79"
GG308-NP12-27	0.75"	1-1/16-12	M27 x 2.0	1.65"	1.93"
GG308-NP16-33	-	-	-	-	-
