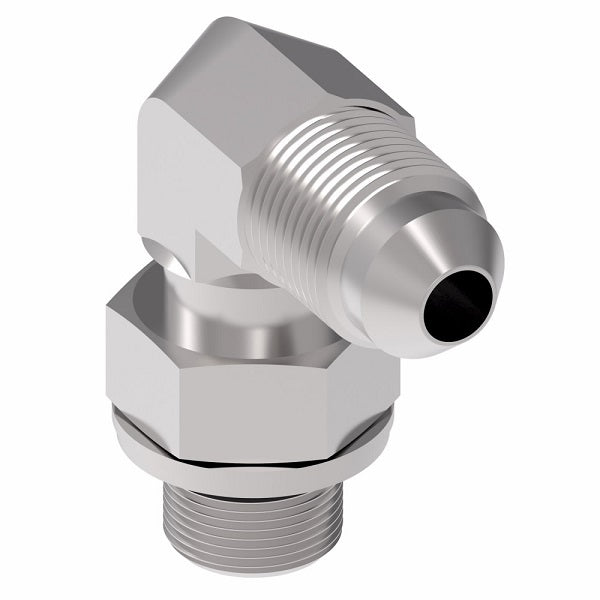

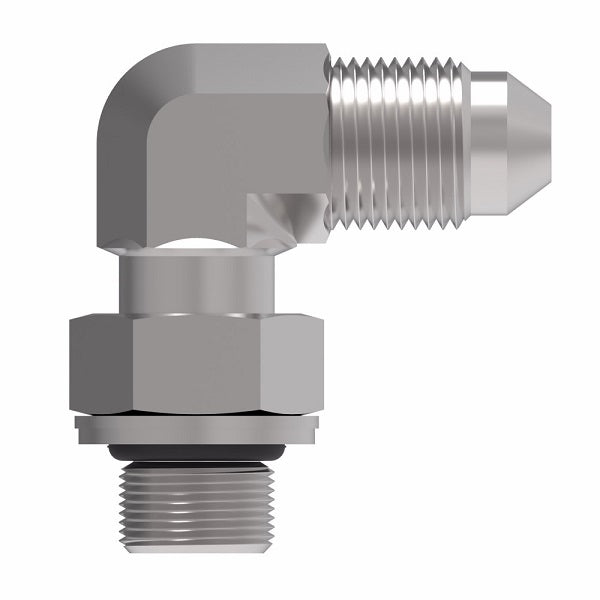

GG308-NP10-20 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -10 Male 37° JIC x M20 Male Metric | Steel

GG308-NP10-20 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -10 Male 37° JIC x M20 Male Metric | Steel

Name: GG308-NP10-20 Aeroquip by Danfoss | Male 37° JIC/Metric (Adj.) Male 90° Elbow Adapter | -10 Male 37° JIC x M20 Male Metric | Steel
Brand: Danfoss/Eaton
SKU: GG308-NP10-20 Danfoss
Price: 50.18 USD
Availability: InStock

$50.18 - $50.18

$50.18

$50.18 - $50.18

$50.18

Aeroquip® by Danfoss
Male 37° JIC/Metric (Adj.) Male Adapter
Male 37° JIC x Male Metric
90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: GG308-NP10-20 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Male JIC, 20mm Male Metric
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A	RØ
GG308-NP04-10	0.25"	7/16-20	M10 x 1.0	0.89"	1.02"
GG308-NP04-12	0.25"	7/16-20	M12 x 1.5	1.06"	1.24"
GG308-NP06-14	-	9/16-18	M14 x 1.5	-	-
GG308-NP06-16	0.38"	9/16-18	M16 x 1.5	1.12"	1.44"
GG308-NP08-16	0.50"	3/4-16	M16 x 1.5	1.24"	1.44"
GG308-NP08-18	0.50"	3/4-16	M18 x 1.5	1.24"	1.44"
GG308-NP08-22	-	-	-	-	-
GG308-NP10-18	0.63"	7/8-14	M18 x 1.5	1.44"	1.56"
GG308-NP10-20	0.63"	7/8-14	M20 x 1.5	1.44"	1.69"
GG308-NP10-22	0.63"	7/8-14	M22 x 1.5	1.44"	1.69"
GG308-NP12-22	0.75"	1-1/16-12	M22 x 1.5	1.65"	1.79"
GG308-NP12-27	0.75"	1-1/16-12	M27 x 2.0	1.65"	1.93"
GG308-NP16-33	-	-	-	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
