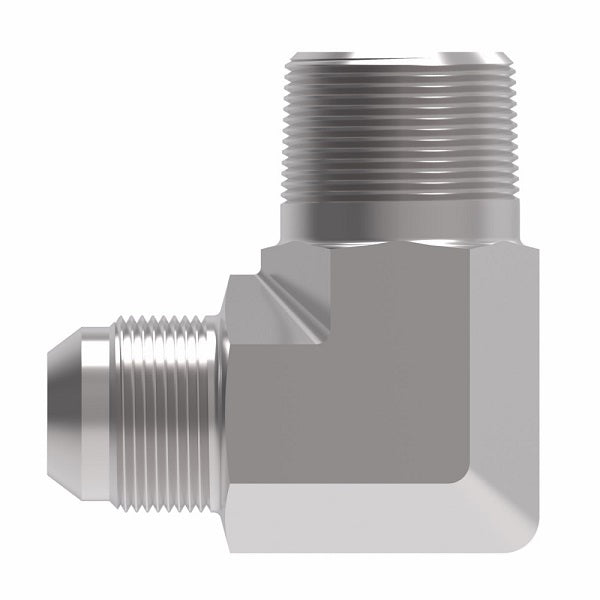

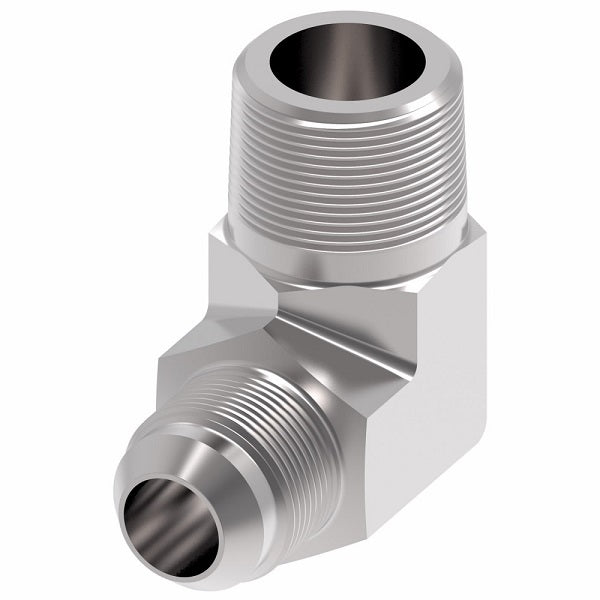

GG310-NP04-02 Aeroquip by Danfoss | Male 37° JIC Flare/BSPT Male 90° Elbow Adapter | -04 Male 37° JIC Flare x -02 Male BSPT | Steel

GG310-NP04-02 Aeroquip by Danfoss | Male 37° JIC Flare/BSPT Male 90° Elbow Adapter | -04 Male 37° JIC Flare x -02 Male BSPT | Steel

Name: GG310-NP04-02 Aeroquip by Danfoss | Male 37° JIC Flare/BSPT Male 90° Elbow Adapter | -04 Male 37° JIC Flare x -02 Male BSPT | Steel
Brand: Danfoss/Eaton
SKU: GG310-NP04-02 Danfoss
Price: 77.4 USD
Availability: InStock

$77.40 - $77.40

$77.40

$77.40 - $77.40

$77.40

Aeroquip® by Danfoss
Male 37° JIC Flare/BSPT Male Adapter
Male 37° JIC Flare x Male BSPT
90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: GG310-NP04-02 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Male JIC, 1/8in Male BSPT
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A	B
GG310-NP04-02	0.25"	7/16-20	R1/8-28	0.81"	0.92"
GG310-NP04-04	0.25"	7/16-20	R1/4-19	1.08"	1.06"
GG310-NP05-04	-	-	-	-	-
GG310-NP06-04	0.38"	9/16-18	R1/4-19	1.08"	1.06"
GG310-NP06-06	0.38"	9/16-18	R3/8-19	1.22"	1.12"
GG310-NP08-06	0.50"	3/4-16	R3/8-19	1.22"	1.24"
GG310-NP08-08	0.50"	3/4-16	R1/2-14	1.46"	1.34"
GG310-NP10-12	-	-	-	-	-
GG310-NP12-12	0.75"	1-1/16-12	R3/4-14	1.59"	1.65"
GG310-NP16-16	1.00"	1-5/16-12	R1-11	1.97"	1.81"
GG310-NP20-20	-	-	-	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
