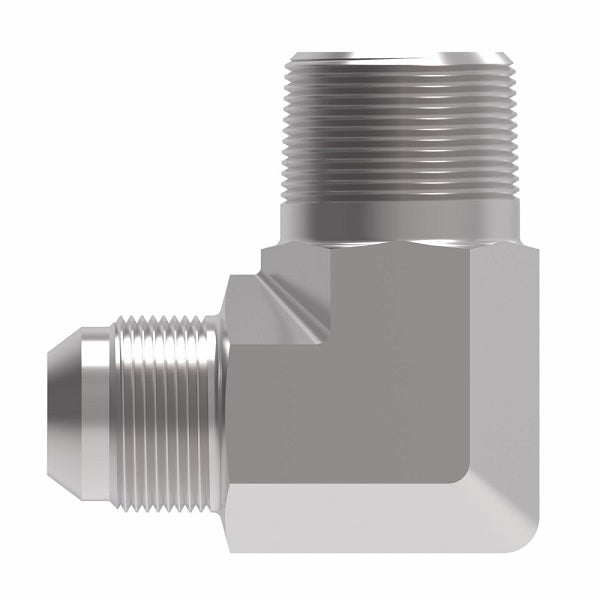

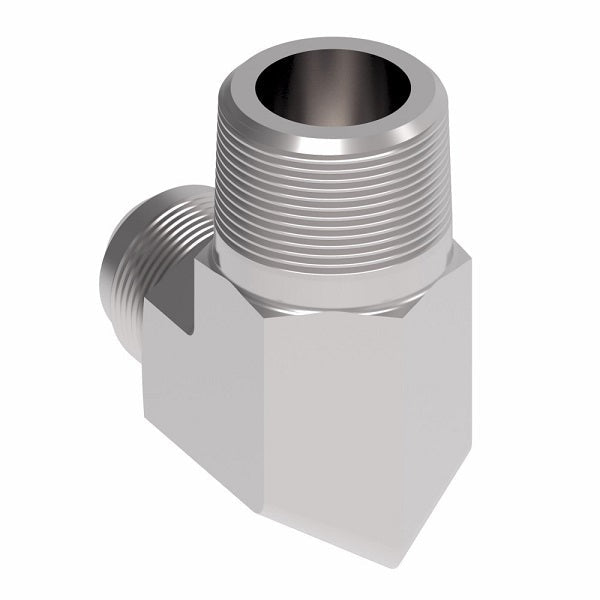

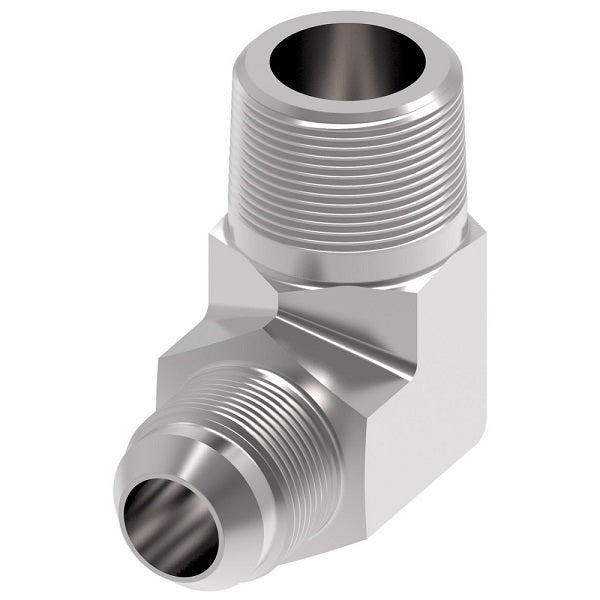

GG310-NP05-04 Aeroquip by Danfoss | Male 37° JIC Flare/BSPT Male 90° Elbow Adapter | -05 Male 37° JIC Flare x -04 Male BSPT | Steel

GG310-NP05-04 Aeroquip by Danfoss | Male 37° JIC Flare/BSPT Male 90° Elbow Adapter | -05 Male 37° JIC Flare x -04 Male BSPT | Steel

$24.02 - $24.02
$24.02
$24.02 - $24.02
$24.02

Aeroquip® by Danfoss
Male 37° JIC Flare/BSPT Male Adapter
Male 37° JIC Flare x Male BSPT
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: GG310-NP05-04 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/16in Male JIC, 1/4in Male BSPT
Material(s): Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A B
GG310-NP04-02 0.25" 7/16-20 R1/8-28 0.81" 0.92"
GG310-NP04-04 0.25" 7/16-20 R1/4-19 1.08" 1.06"
GG310-NP05-04 - - - - -
GG310-NP06-04 0.38" 9/16-18 R1/4-19 1.08" 1.06"
GG310-NP06-06 0.38" 9/16-18 R3/8-19 1.22" 1.12"
GG310-NP08-06 0.50" 3/4-16 R3/8-19 1.22" 1.24"
GG310-NP08-08 0.50" 3/4-16 R1/2-14 1.46" 1.34"
GG310-NP10-12 - - - - -
GG310-NP12-12 0.75" 1-1/16-12 R3/4-14 1.59" 1.65"
GG310-NP16-16 1.00" 1-5/16-12 R1-11 1.97" 1.81"
GG310-NP20-20 - - - - -
