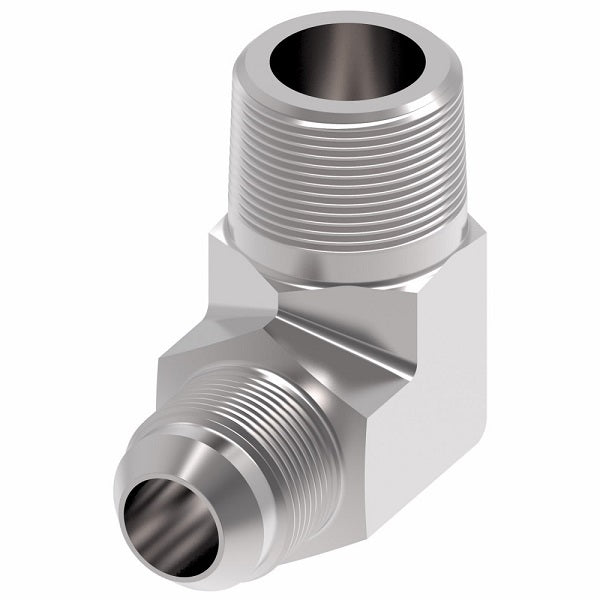

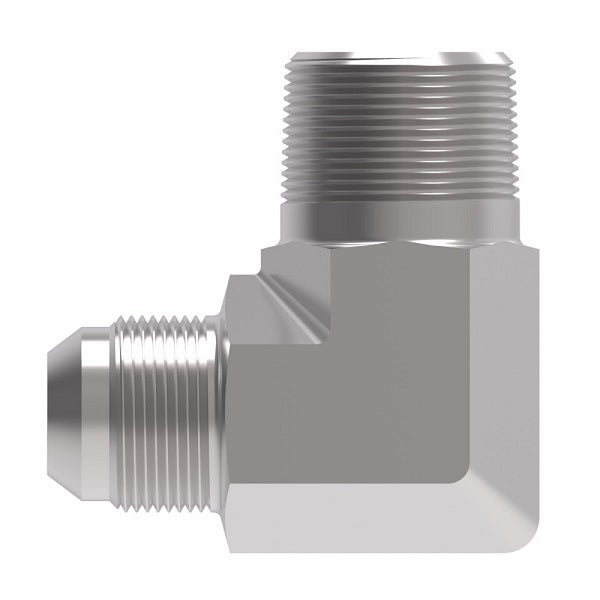

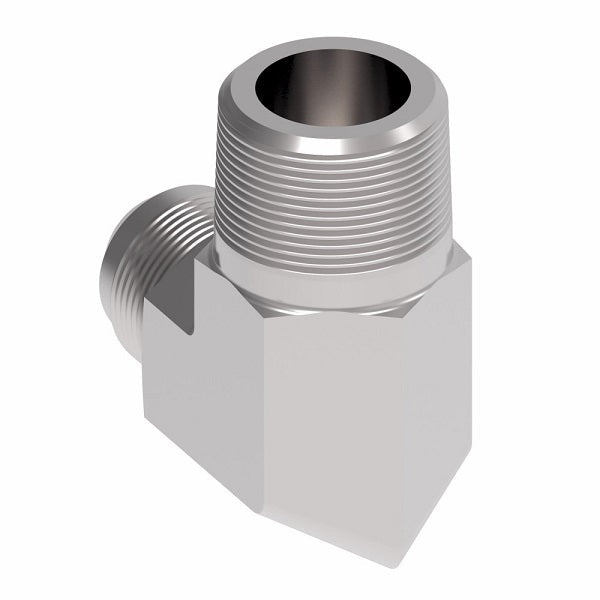

GG310-NP08-06 Aeroquip by Danfoss | Male 37° JIC Flare/BSPT Male 90° Elbow Adapter | -08 Male 37° JIC Flare x -06 Male BSPT | Steel

GG310-NP08-06 Aeroquip by Danfoss | Male 37° JIC Flare/BSPT Male 90° Elbow Adapter | -08 Male 37° JIC Flare x -06 Male BSPT | Steel

Name: GG310-NP08-06 Aeroquip by Danfoss | Male 37° JIC Flare/BSPT Male 90° Elbow Adapter | -08 Male 37° JIC Flare x -06 Male BSPT | Steel
Brand: Danfoss/Eaton
SKU: GG310-NP08-06 Danfoss
Price: 38.35 USD
Availability: InStock

$38.35 - $38.35

$38.35

$38.35 - $38.35

$38.35

Aeroquip® by Danfoss
Male 37° JIC Flare/BSPT Male Adapter
Male 37° JIC Flare x Male BSPT
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: GG310-NP08-06 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Male JIC, 3/8in Male BSPT
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A	B
GG310-NP04-02	0.25"	7/16-20	R1/8-28	0.81"	0.92"
GG310-NP04-04	0.25"	7/16-20	R1/4-19	1.08"	1.06"
GG310-NP05-04	-	-	-	-	-
GG310-NP06-04	0.38"	9/16-18	R1/4-19	1.08"	1.06"
GG310-NP06-06	0.38"	9/16-18	R3/8-19	1.22"	1.12"
GG310-NP08-06	0.50"	3/4-16	R3/8-19	1.22"	1.24"
GG310-NP08-08	0.50"	3/4-16	R1/2-14	1.46"	1.34"
GG310-NP10-12	-	-	-	-	-
GG310-NP12-12	0.75"	1-1/16-12	R3/4-14	1.59"	1.65"
GG310-NP16-16	1.00"	1-5/16-12	R1-11	1.97"	1.81"
GG310-NP20-20	-	-	-	-	-
