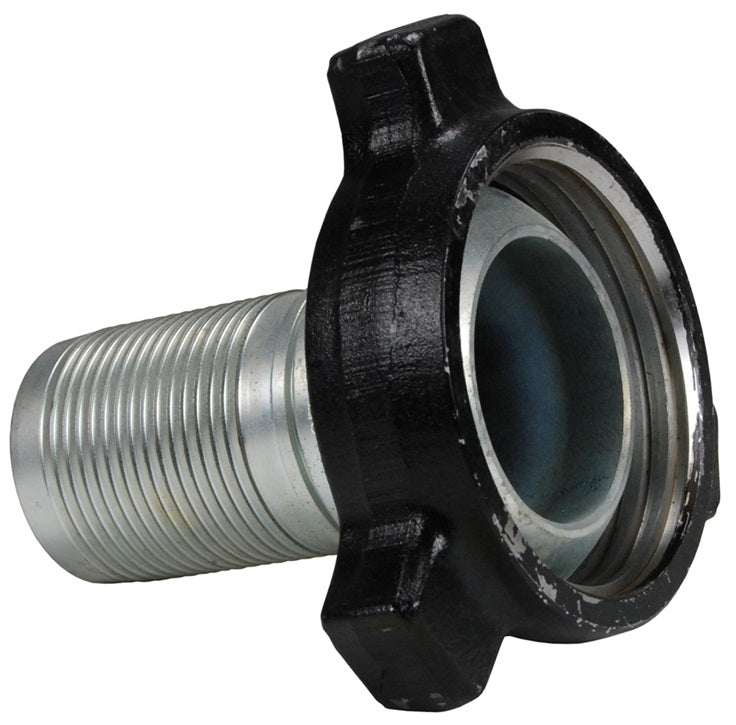

HUM100300CS by Dixon Valve | Boss® LPS Frac Fitting | Figure 100 | Male Fitting with Nut | 3" Size | Iron/Steel

Save $21.14

$190.29

$190.29 - $190.29

$190.29

$169.15

$169.15 - $169.15

$169.15

Dixon Valve
Boss® | LPS Frac Fitting | Male Fitting with Nut

Used in the fast-paced transfer of water, chemicals, and sand slurry to a hydraulic fracturing site.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HUM100300CS Dixon
Brand:	Boss
Shape (Orientation):	Straight
Ends Configuration:	3in Male Frac Fitting, 3in Hose Barb
Material(s):	Iron, Steel

Compatibility & Interchange Data:
Interchangeable with current fittings; phase them into your current operation. Designed to work with Dixon King Crimp Ferrules.
Features:
One-piece design eliminates leak path experienced with two-piece threaded systems. Long lasting and dependable forged hammer nut. Durable and safe with reliable hose retention when crimped as specified.
Construction:
Frac fittings: machined iron to ASTM standards; zinc plated. Nut: forged steel meeting AISI standards. Painted Carbon Steel forged nut. Figure 200 has a metal-to-metal sealing surface and Figure 206 is similar to Figure 200 with a secondary seal to supplement the metal-to-metal design.
Specifications:
400 PSI working pressure at 70°F (21°C) for 3" and 4" sizes; 4:1 safety factor (SF)1 230 PSI working pressure at 70°F (21°C) for 6" size; 4:1 safety factor (SF) 150 PSI working pressure at 70°F (21°C) for 8" size; 3:1 safety factor (SF) 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 3" size uses standard crimp ferrules 4" size requires heavy duty (HD) crimp ferrules, CF400-6CSHD through CF400-16CSHD and heavy duty stems. NOTE: Water and petroleum transfer hoses rated from 100 to 300 PSI WP (4:1 SF) have excellent test results with the standard King Crimp ferrules CF400-xxCS.
Safety Notes:
400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 2" and 3" sizes using standard crimp ferrules.

Plated Steel Part Number	Size	Figure	Includes
HUM100300CS	3"	100	Nut
HUM206300CS	3"	206	Nut and O-Ring
HUM100400CS	4"	100	Nut
HUM206400CS	4"	206	Nut and O-Ring
HUM100600CS	6"	100	Nut
HUM206600CS	6"	206	Nut and O-Ring
HUM100800CS	8"	100	Nut
HUM206800CS	8"	206	Nut and O-Ring
