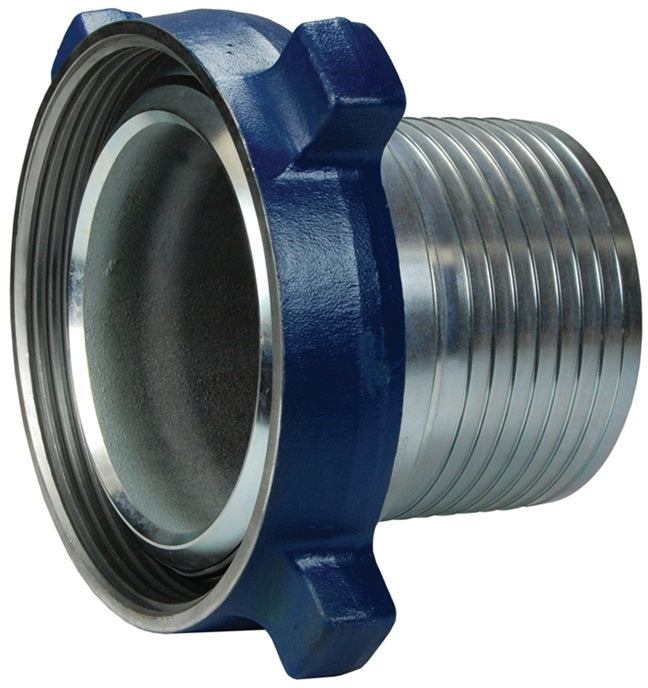

HUM100800CS by Dixon Valve | Boss® LPS Frac Fitting | Figure 100 | Male Fitting with Nut | 8" Size | Iron/Steel

Save $17.62

$792.86

$792.86 - $792.86

$792.86

$775.24

$775.24 - $775.24

$775.24

Dixon Valve
Boss® | LPS Frac Fitting | Male Fitting with Nut

Used in the fast-paced transfer of water, chemicals, and sand slurry to a hydraulic fracturing site.

Quantity

Specifications for Variant SKU: HUM100800CS Dixon
Brand:	Boss
Shape (Orientation):	Straight
Ends Configuration:	8in Male Frac Fitting, 8in Hose Barb
Material(s):	Iron, Steel

Compatibility & Interchange Data:
Interchangeable with current fittings; phase them into your current operation. Designed to work with Dixon King Crimp Ferrules.
Features:
One-piece design eliminates leak path experienced with two-piece threaded systems. Long lasting and dependable forged hammer nut. Durable and safe with reliable hose retention when crimped as specified.
Construction:
Frac fittings: machined iron to ASTM standards; zinc plated. Nut: forged steel meeting AISI standards. Painted Carbon Steel forged nut. Figure 200 has a metal-to-metal sealing surface and Figure 206 is similar to Figure 200 with a secondary seal to supplement the metal-to-metal design.
Specifications:
400 PSI working pressure at 70°F (21°C) for 3" and 4" sizes; 4:1 safety factor (SF)1 230 PSI working pressure at 70°F (21°C) for 6" size; 4:1 safety factor (SF) 150 PSI working pressure at 70°F (21°C) for 8" size; 3:1 safety factor (SF) 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 3" size uses standard crimp ferrules 4" size requires heavy duty (HD) crimp ferrules, CF400-6CSHD through CF400-16CSHD and heavy duty stems. NOTE: Water and petroleum transfer hoses rated from 100 to 300 PSI WP (4:1 SF) have excellent test results with the standard King Crimp ferrules CF400-xxCS.
Safety Notes:
400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 2" and 3" sizes using standard crimp ferrules.

Plated Steel Part Number	Size	Figure	Includes
HUM100300CS	3"	100	Nut
HUM206300CS	3"	206	Nut and O-Ring
HUM100400CS	4"	100	Nut
HUM206400CS	4"	206	Nut and O-Ring
HUM100600CS	6"	100	Nut
HUM206600CS	6"	206	Nut and O-Ring
HUM100800CS	8"	100	Nut
HUM206800CS	8"	206	Nut and O-Ring
