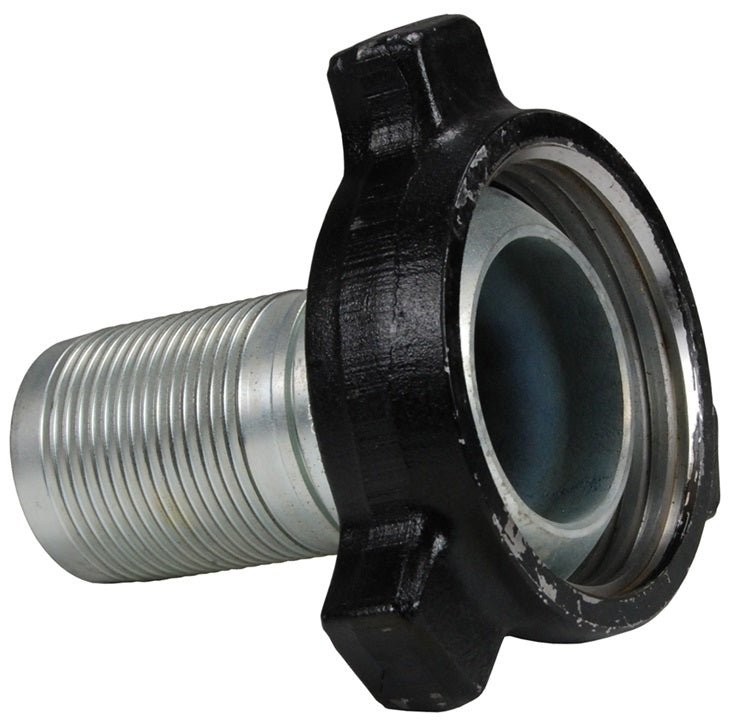

HUM100400CS by Dixon Valve | Boss® LPS Frac Fitting | Figure 100 | Male Fitting with Nut | 4" Size | Iron/Steel

HUM100400CS by Dixon Valve | Boss® LPS Frac Fitting | Figure 100 | Male Fitting with Nut | 4" Size | Iron/Steel

Save $141.01 Save $141.01
$352.52
$352.52 - $352.52
$352.52
$211.51
$211.51 - $211.51
$211.51

Dixon Valve
Boss® | LPS Frac Fitting | Male Fitting with Nut

Used in the fast-paced transfer of water, chemicals, and sand slurry to a hydraulic fracturing site.
Specifications for Variant SKU: HUM100400CS Dixon
Brand: Boss
Shape (Orientation): Straight
Ends Configuration: 4in Male Frac Fitting, 4in Hose Barb
Material(s): Iron, Steel
Compatibility & Interchange Data:
  • Interchangeable with current fittings; phase them into your current operation.
  • Designed to work with Dixon King Crimp Ferrules.
Features:
  • One-piece design eliminates leak path experienced with two-piece threaded systems.
  • Long lasting and dependable forged hammer nut.
  • Durable and safe with reliable hose retention when crimped as specified.
Construction:
  • Frac fittings: machined iron to ASTM standards; zinc plated.
  • Nut: forged steel meeting AISI standards.
  • Painted Carbon Steel forged nut.
  • Figure 200 has a metal-to-metal sealing surface and Figure 206 is similar to Figure 200 with a secondary seal to supplement the metal-to-metal design.
Specifications:
  • 400 PSI working pressure at 70°F (21°C) for 3" and 4" sizes; 4:1 safety factor (SF)1
  • 230 PSI working pressure at 70°F (21°C) for 6" size; 4:1 safety factor (SF)
  • 150 PSI working pressure at 70°F (21°C) for 8" size; 3:1 safety factor (SF)
  • 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with:
    • 3" size uses standard crimp ferrules
    • 4" size requires heavy duty (HD) crimp ferrules, CF400-6CSHD through
    • CF400-16CSHD and heavy duty stems.
  • NOTE: Water and petroleum transfer hoses rated from 100 to 300 PSI WP (4:1 SF) have excellent test results with the standard King Crimp ferrules CF400-xxCS.
Safety Notes:
  • 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 2" and 3" sizes using standard crimp ferrules.
Plated Steel
Part Number		 Size Figure Includes
HUM100300CS 3" 100 Nut
HUM206300CS 3" 206 Nut and O-Ring
HUM100400CS 4" 100 Nut
HUM206400CS 4" 206 Nut and O-Ring
HUM100600CS 6" 100 Nut
HUM206600CS 6" 206 Nut and O-Ring
HUM100800CS 8" 100 Nut
HUM206800CS 8" 206 Nut and O-Ring
