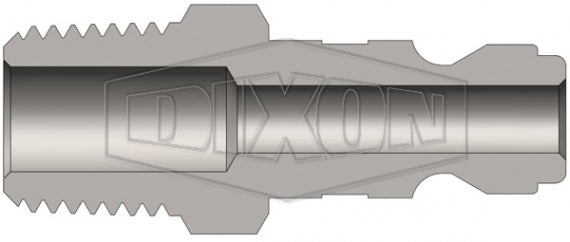

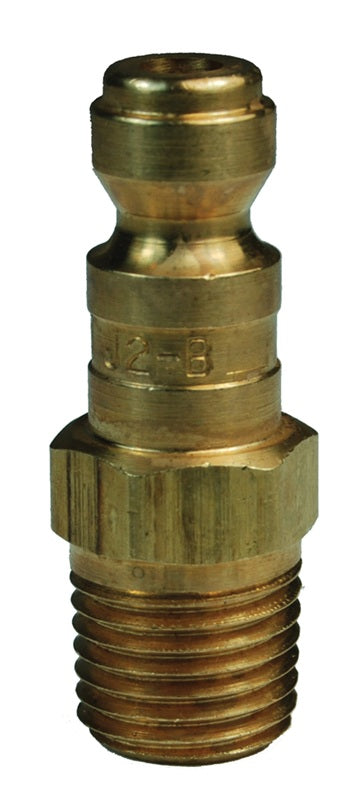

J2M2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | 1/4" Male NPTF x 1/4" Automotive Interchange | Plug | Brass

Save $0.07

$1.59

$1.59 - $1.59

$1.59

$1.52

$1.52 - $1.52

$1.52

Dixon Valve & Coupling
Pneumatic Coupling: J-Series Automotive Interchange Plug (Male Threads)

Quantity

Specifications for Variant SKU: J2M2-B Dixon
Series:	J-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male Tru-Flate QD Interchange, 1/4in Male NPTF
Material(s):	Brass

Compatibility & Interchange:	Truflate Automotive Interchange Parker 10 Series, Rectus 55KM and Tomco A2100/PT400
Construction:	Machined components are manufactured using solid bar stock.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

J-Series \| Automotive Interchange Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Working Pressure / Burst Pressure when Connected to:
J2M1	Plug/Male	1/4"	1/8" - 27 Male NPTF	Steel	1.47" (37.3mm)	0.58" (14.7mm)	1/2"	Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (793 bar)
J2M2	Plug/Male	1/4"	1/4" - 18 Male NPTF	Steel	1.59" (40.4mm)	0.65" (16.5mm)	9/16"	Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (793 bar)
J2M2-B	Plug/Male	1/4"	1/4" - 18 Male NPTF	Brass	1.59" (40.4mm)	0.65" (16.5mm)	9/16"	Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) \| Burst: 10,500 PSI (724 bar)
J2M3	Plug/Male	1/4"	3/8" - 18 Male NPTF	Steel	1.65" (41.9mm)	0.79" (20.1mm)	3/4"	Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 11,500 PSI (793 bar)
J3M2	Plug/Male	3/8"	1/4" - 18 Male NPTF	Steel	1.78" (45.2mm)	0.79" (20.1mm)	11/16"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 18,000 PSI (1,241 bar)
J3M3	Plug/Male	3/8"	3/8" - 18 Male NPTF	Steel	1.84" (46.7mm)	0.79" (20.1mm)	3/4"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 18,000 PSI (1,241 bar)
J3M4	Plug/Male	3/8"	1/2" - 14 Male NPTF	Steel	2.00" (50.8mm)	1.01" (25.7mm)	7/8"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 18,000 PSI (1,241 bar)
J4M3	Plug/Male	1/2"	3/8" - 18 Male NPTF	Steel	2.20" (55.9mm)	0.79" (20.1mm)	11/16"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (690 bar)
J4M4	Plug/Male	1/2"	1/2" - 14 Male NPTF	Steel	2.35" (59.7mm)	1.01" (25.7mm)	7/8"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (690 bar)
J4M6	Plug/Male	1/2"	3/4" - 14 Male NPTF	Steel	2.51" (63.8mm)	1.23" (31.2mm)	1-1/16"	Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) \| Burst: 10,000 PSI (690 bar)
