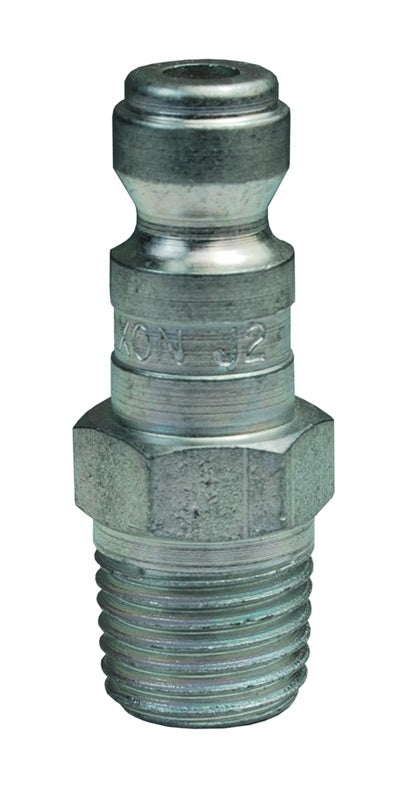

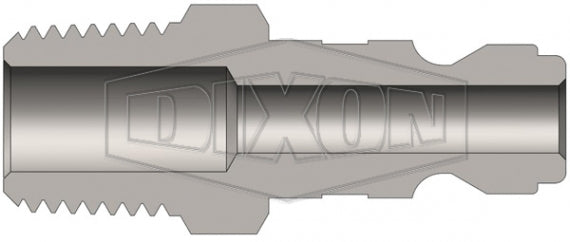

J4M6 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | 3/4" Male NPTF x 1/2" Automotive Interchange | Plug | Steel
J4M6 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | 3/4" Male NPTF x 1/2" Automotive Interchange | Plug | Steel
J4M6 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | 3/4" Male NPTF x 1/2" Automotive Interchange | Plug | Steel

J4M6 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | 3/4" Male NPTF x 1/2" Automotive Interchange | Plug | Steel

Save $0.46 Save $0.46
$7.93
$7.93 - $7.93
$7.93
$7.47
$7.47 - $7.47
$7.47

Dixon Valve & Coupling
Pneumatic Coupling: J-Series Automotive Interchange Plug (Male Threads)
Specifications for Variant SKU: J4M6 Dixon
Series: J-Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male Tru-Flate QD Interchange, 3/4in Male NPTF
Material(s): Steel
Compatibility & Interchange:
  • Truflate Automotive Interchange
  • Parker 10 Series, Rectus 55KM and Tomco A2100/PT400
Construction:
  • Machined components are manufactured using solid bar stock.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
J-Series | Automotive Interchange Plug (Male Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
J2M1 Plug/Male 1/4" 1/8" - 27 Male NPTF Steel 1.47"
(37.3mm)		 0.58"
(14.7mm)		 1/2"
  • Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (793 bar)
    J2M2 Plug/Male 1/4" 1/4" - 18 Male NPTF Steel 1.59"
    (40.4mm)    		 0.65"
    (16.5mm)    		 9/16"
    • Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (793 bar)
      J2M2-B Plug/Male 1/4" 1/4" - 18 Male NPTF Brass 1.59"
      (40.4mm)      		 0.65"
      (16.5mm)      		 9/16"
      • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 10,500 PSI (724 bar)
        J2M3 Plug/Male 1/4" 3/8" - 18 Male NPTF Steel 1.65"
        (41.9mm)        		 0.79"
        (20.1mm)        		 3/4"
        • Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (793 bar)
          J3M2 Plug/Male 3/8" 1/4" - 18 Male NPTF Steel 1.78"
          (45.2mm)          		 0.79"
          (20.1mm)          		 11/16"
          • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 18,000 PSI (1,241 bar)
            J3M3 Plug/Male 3/8" 3/8" - 18 Male NPTF Steel 1.84"
            (46.7mm)            		 0.79"
            (20.1mm)            		 3/4"
            • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 18,000 PSI (1,241 bar)
              J3M4 Plug/Male 3/8" 1/2" - 14 Male NPTF Steel 2.00"
              (50.8mm)              		 1.01"
              (25.7mm)              		 7/8"
              • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 18,000 PSI (1,241 bar)
                J4M3 Plug/Male 1/2" 3/8" - 18 Male NPTF Steel 2.20"
                (55.9mm)                		 0.79"
                (20.1mm)                		 11/16"
                • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (690 bar)
                  J4M4 Plug/Male 1/2" 1/2" - 14 Male NPTF Steel 2.35"
                  (59.7mm)                  		 1.01"
                  (25.7mm)                  		 7/8"
                  • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (690 bar)
                    J4M6 Plug/Male 1/2" 3/4" - 14 Male NPTF Steel 2.51"
                    (63.8mm)                    		 1.23"
                    (31.2mm)                    		 1-1/16"
                    • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (690 bar)
