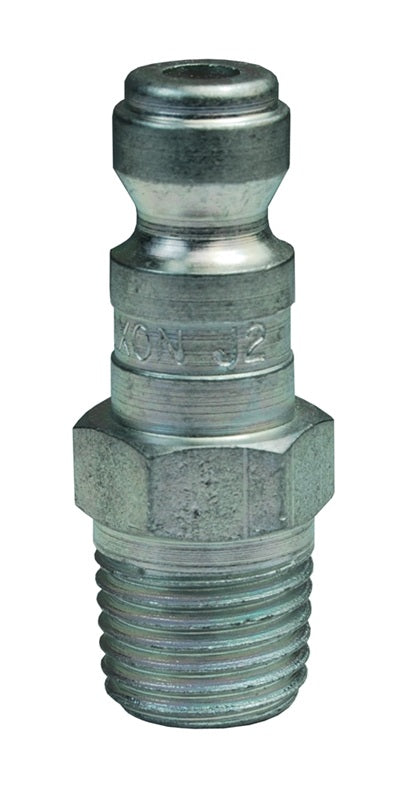

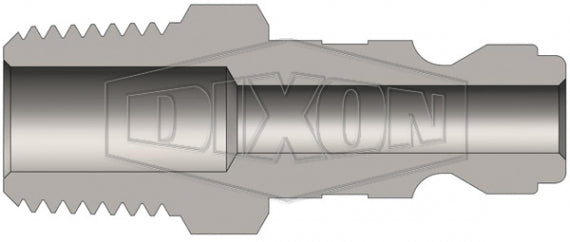

J3M3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | 3/8" Male NPTF x 3/8" Automotive Interchange | Plug | Steel

J3M3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | J-Series | 3/8" Male NPTF x 3/8" Automotive Interchange | Plug | Steel

Save $0.22 Save $0.22
$1.95
$1.95 - $1.95
$1.95
$1.73
$1.73 - $1.73
$1.73

Dixon Valve & Coupling
Pneumatic Coupling: J-Series Automotive Interchange Plug (Male Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: J3M3 Dixon
Series: J-Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male Tru-Flate QD Interchange, 3/8in Male NPTF
Material(s): Steel
Compatibility & Interchange:
  • Truflate Automotive Interchange
  • Parker 10 Series, Rectus 55KM and Tomco A2100/PT400
Construction:
  • Machined components are manufactured using solid bar stock.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
J-Series | Automotive Interchange Plug (Male Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
J2M1 Plug/Male 1/4" 1/8" - 27 Male NPTF Steel 1.47"
(37.3mm)		 0.58"
(14.7mm)		 1/2"
  • Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (793 bar)
    J2M2 Plug/Male 1/4" 1/4" - 18 Male NPTF Steel 1.59"
    (40.4mm)    		 0.65"
    (16.5mm)    		 9/16"
    • Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (793 bar)
      J2M2-B Plug/Male 1/4" 1/4" - 18 Male NPTF Brass 1.59"
      (40.4mm)      		 0.65"
      (16.5mm)      		 9/16"
      • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 10,500 PSI (724 bar)
        J2M3 Plug/Male 1/4" 3/8" - 18 Male NPTF Steel 1.65"
        (41.9mm)        		 0.79"
        (20.1mm)        		 3/4"
        • Brass Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (793 bar)
          J3M2 Plug/Male 3/8" 1/4" - 18 Male NPTF Steel 1.78"
          (45.2mm)          		 0.79"
          (20.1mm)          		 11/16"
          • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 18,000 PSI (1,241 bar)
            J3M3 Plug/Male 3/8" 3/8" - 18 Male NPTF Steel 1.84"
            (46.7mm)            		 0.79"
            (20.1mm)            		 3/4"
            • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 18,000 PSI (1,241 bar)
              J3M4 Plug/Male 3/8" 1/2" - 14 Male NPTF Steel 2.00"
              (50.8mm)              		 1.01"
              (25.7mm)              		 7/8"
              • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 18,000 PSI (1,241 bar)
                J4M3 Plug/Male 1/2" 3/8" - 18 Male NPTF Steel 2.20"
                (55.9mm)                		 0.79"
                (20.1mm)                		 11/16"
                • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (690 bar)
                  J4M4 Plug/Male 1/2" 1/2" - 14 Male NPTF Steel 2.35"
                  (59.7mm)                  		 1.01"
                  (25.7mm)                  		 7/8"
                  • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (690 bar)
                    J4M6 Plug/Male 1/2" 3/4" - 14 Male NPTF Steel 2.51"
                    (63.8mm)                    		 1.23"
                    (31.2mm)                    		 1-1/16"
                    • Steel Coupler & Steel Plug: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (690 bar)
