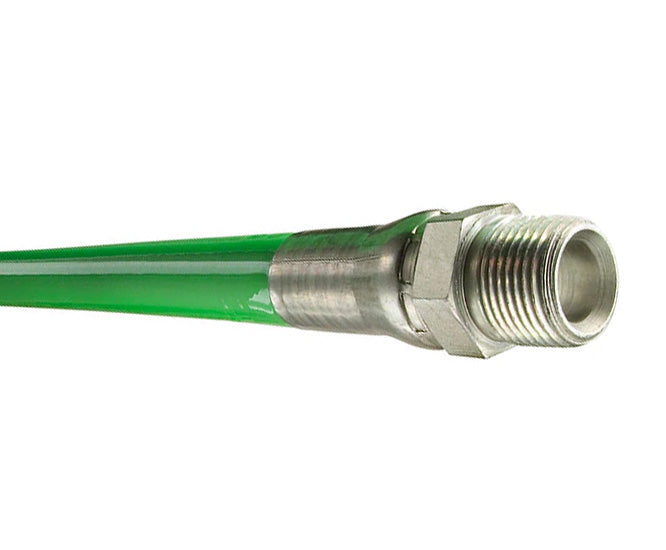

LLGR-MM06X250 Piranha® by Kuriyama | LLGR Series | Jetting Line Hose Assembly | 4000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Green | 250ft Length

Save $88.71

$446.11

$446.11 - $446.11

$446.11

$357.40

$357.40 - $357.40

$357.40

Kuriyama
Piranha® | LLGR Series | Jetting Line Hose Assembly | 4000 PSI | Green Cover

Used for jetting equipment in commercial, industrial and residential environments.

Made in the USA.

Specifications for Variant SKU: LLGR-MM06X250 Kuriyama
Brand:	Piranha
Series:	LLGR Series
Hose Color(s):	Green
Internal Diameter:	0.375in - 3/8in
Outer Diameter:	0.65in
Cover Construction:	Polyurethane
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPTF, 3/8in Male NPTF, Some Ends Match

SPECIFICATIONS

Other Features:
Applications:	Jetting/Lateral Line - Used for jetting equipment in commercial, industrial and residential environments.

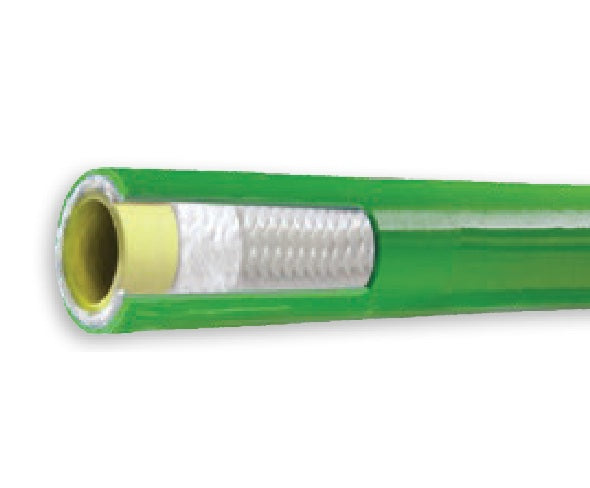

Tube:	Yellow seamless thermoplastic tube.	Reinforcement:	Double high tensile synthetic fiber braid.
Cover:	Abrasion resistant green polyurethane.	Service Temperature Range:	Sizes 02, 03: -40°F (-40°C) to +160°F (+71°C) Sizes 04, 06, 08: -40°F (-40°C) to +190°F (+87°C)
Specifications:	-
Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions. Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha Hose Product. Seamless Thermoplastic Tube - Provides maximum resistance to hydrolysis. High Tensile One or Two Synthetic Fiber Braids - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption. Abrasion Resistant Polyurethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance. End Fittings - Hoses are assembled Male x Male NPT threads as a standard. Pressure Testing - All Piranha Sewer Hoses are 100% pressure tested.

Part Number Male x Male NPTF	ID		OD		Max. Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
Part Number Male x Male NPTF	(in)	(mm)	(in)	(mm)	(psi)	(bar)	(psi)	(bar)	(in)	(mm)	(ft)	(lbs/ft)
Male NPTF x Male NPTF Ends
LLGR-MM02X50	1/8"	3.6mm	0.32"	8.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.25"	31.2mm	50ft	0.04lbs
LLGR-MM02X100	1/8"	3.6mm	0.32"	8.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.25"	31.2mm	100ft	0.04lbs
LLGR-MM02X150	1/8"	3.6mm	0.32"	8.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.25"	31.2mm	150ft	0.04lbs
LLGR-MM02X200	1/8"	3.6mm	0.32"	8.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.25"	31.2mm	200ft	0.04lbs
LLGR-MM02X250	1/8"	3.6mm	0.32"	8.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.25"	31.2mm	250ft	0.04lbs

LLGR-MM03X150	3/16"	4.8mm	0.41"	10.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.75"	44.5mm	150ft	0.05lbs

LLGR-MM04X100	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	100ft	0.06lbs
LLGR-MM04X150	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	150ft	0.06lbs
LLGR-MM04X200	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	200ft	0.06lbs
LLGR-MM04X250	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	250ft	0.06lbs
LLGR-MM04X300	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	300ft	0.06lbs
LLGR-MM04X500	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	500ft	0.06lbs

LLGR-MM06X100	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	100ft	0.11lbs
LLGR-MM06X150	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	150ft	0.11lbs
LLGR-MM06X200	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	200ft	0.11lbs
LLGR-MM06X250	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	250ft	0.11lbs
LLGR-MM06X300	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	300ft	0.11lbs
LLGR-MM06X400	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	400ft	0.11lbs
LLGR-MM06X500	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	500ft	0.11lbs

LLGR-MM08X100	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	100ft	0.16lbs
LLGR-MM08X150	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	150ft	0.16lbs
LLGR-MM08X200	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	200ft	0.16lbs
LLGR-MM08X300	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	300ft	0.16lbs
LLGR-MM08X400	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	400ft	0.16lbs
LLGR-MM08X500	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	500ft	0.16lbs
LLGR-MM08X600	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	600ft	0.16lbs
Male NPTF x Male NPTF Swivel Ends
LLGR-MS04X200	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	200ft	0.06lbs
LLGR-MS06X50	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	50ft	0.11lbs
LLGR-MS06X100	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	100ft	0.11lbs
LLGR-MS06X150	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	150ft	0.11lbs
LLGR-MS06X200	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	200ft	0.11lbs
LLGR-MS06X250	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	250ft	0.11lbs
LLGR-MS06X300	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	300ft	0.11lbs
Male NPTF Swivel x Male NPTF Swivel Ends
LLGR-MSMS06X300	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	300ft	0.11lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
