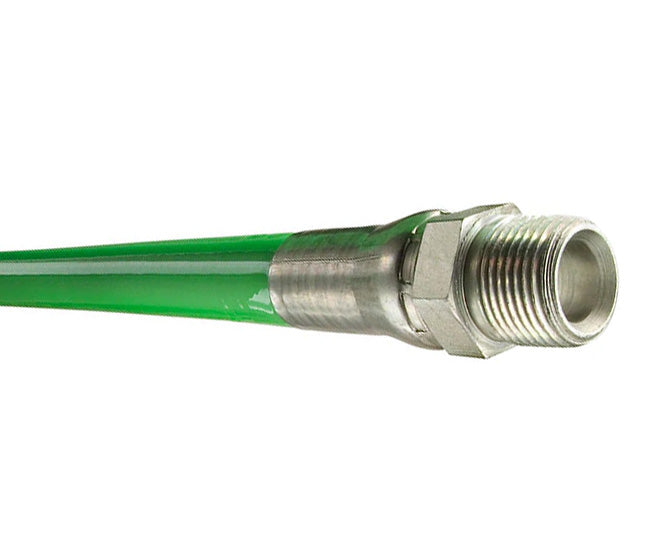

LLGR-MM06X400 Piranha® by Kuriyama | LLGR Series | Jetting Line Hose Assembly | 4000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Green | 400ft Length
LLGR-MM06X400 Piranha® by Kuriyama | LLGR Series | Jetting Line Hose Assembly | 4000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Green | 400ft Length
LLGR-MM06X400 Piranha® by Kuriyama | LLGR Series | Jetting Line Hose Assembly | 4000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Green | 400ft Length

LLGR-MM06X400 Piranha® by Kuriyama | LLGR Series | Jetting Line Hose Assembly | 4000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Green | 400ft Length

Save $137.46 Save $137.46
$687.10
$687.10 - $687.10
$687.10
$549.64
$549.64 - $549.64
$549.64

Kuriyama
Piranha® | LLGR Series | Jetting Line Hose Assembly | 4000 PSI | Green Cover

Used for jetting equipment in commercial, industrial and residential environments.

Made in the USA.
Specifications for Variant SKU: LLGR-MM06X400 Kuriyama
Brand: Piranha
Series: LLGR Series
Hose Color(s): Green
Internal Diameter: 0.375in - 3/8in
Outer Diameter: 0.65in
Cover Construction: Polyurethane
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 3/8in Male NPTF, Some Ends Match

SPECIFICATIONS

Applications: Jetting/Lateral Line - Used for jetting equipment in commercial, industrial and residential environments.

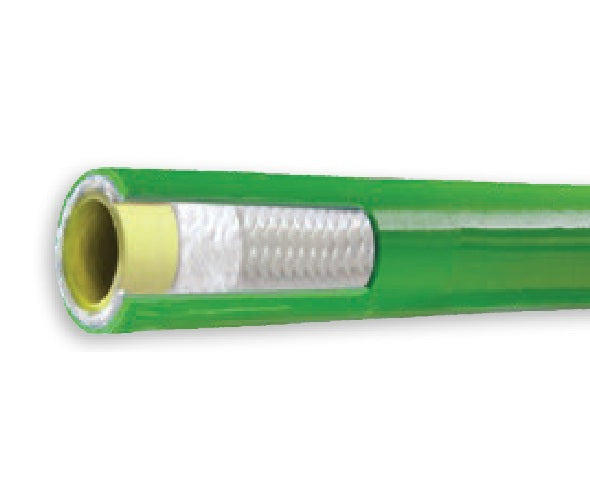

Tube: Yellow seamless thermoplastic tube. Reinforcement: Double high tensile synthetic fiber braid.
Cover: Abrasion resistant green polyurethane. Service Temperature Range: Sizes 02, 03: -40°F (-40°C) to +160°F (+71°C)
Sizes 04, 06, 08: -40°F (-40°C) to +190°F (+87°C)
Specifications: -
Other Features:
  • Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions.
  • Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha Hose Product.
  • Seamless Thermoplastic Tube - Provides maximum resistance to hydrolysis.
  • High Tensile One or Two Synthetic Fiber Braids - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption.
  • Abrasion Resistant Polyurethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance.
  • End Fittings - Hoses are assembled Male x Male NPT threads as a standard.
  • Pressure Testing - All Piranha Sewer Hoses are 100% pressure tested.
Part Number
Male x Male NPTF		 ID OD Max.
Working
Pressure		 Min.
Burst
Pressure		 Min.
Bend
Radius		 Length Weight
(in) (mm) (in) (mm) (psi) (bar) (psi) (bar) (in) (mm) (ft) (lbs/ft)
Male NPTF x Male NPTF Ends
LLGR-MM02X50 1/8" 3.6mm 0.32" 8.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 1.25" 31.2mm 50ft 0.04lbs
LLGR-MM02X100 1/8" 3.6mm 0.32" 8.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 1.25" 31.2mm 100ft 0.04lbs
LLGR-MM02X150 1/8" 3.6mm 0.32" 8.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 1.25" 31.2mm 150ft 0.04lbs
LLGR-MM02X200 1/8" 3.6mm 0.32" 8.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 1.25" 31.2mm 200ft 0.04lbs
LLGR-MM02X250 1/8" 3.6mm 0.32" 8.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 1.25" 31.2mm 250ft 0.04lbs

LLGR-MM03X150 3/16" 4.8mm 0.41" 10.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 1.75" 44.5mm 150ft 0.05lbs

LLGR-MM04X100 1/4" 6.4mm 0.50" 12.6mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 2.50" 63.5mm 100ft 0.06lbs
LLGR-MM04X150 1/4" 6.4mm 0.50" 12.6mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 2.50" 63.5mm 150ft 0.06lbs
LLGR-MM04X200 1/4" 6.4mm 0.50" 12.6mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 2.50" 63.5mm 200ft 0.06lbs
LLGR-MM04X250 1/4" 6.4mm 0.50" 12.6mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 2.50" 63.5mm 250ft 0.06lbs
LLGR-MM04X300 1/4" 6.4mm 0.50" 12.6mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 2.50" 63.5mm 300ft 0.06lbs
LLGR-MM04X500 1/4" 6.4mm 0.50" 12.6mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 2.50" 63.5mm 500ft 0.06lbs

LLGR-MM06X100 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 100ft 0.11lbs
LLGR-MM06X150 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 150ft 0.11lbs
LLGR-MM06X200 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 200ft 0.11lbs
LLGR-MM06X250 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 250ft 0.11lbs
LLGR-MM06X300 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 300ft 0.11lbs
LLGR-MM06X400 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 400ft 0.11lbs
LLGR-MM06X500 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 500ft 0.11lbs

LLGR-MM08X100 1/2" 12.8mm 0.83" 21.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 4.00" 101.6mm 100ft 0.16lbs
LLGR-MM08X150 1/2" 12.8mm 0.83" 21.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 4.00" 101.6mm 150ft 0.16lbs
LLGR-MM08X200 1/2" 12.8mm 0.83" 21.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 4.00" 101.6mm 200ft 0.16lbs
LLGR-MM08X300 1/2" 12.8mm 0.83" 21.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 4.00" 101.6mm 300ft 0.16lbs
LLGR-MM08X400 1/2" 12.8mm 0.83" 21.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 4.00" 101.6mm 400ft 0.16lbs
LLGR-MM08X500 1/2" 12.8mm 0.83" 21.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 4.00" 101.6mm 500ft 0.16lbs
LLGR-MM08X600 1/2" 12.8mm 0.83" 21.2mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 4.00" 101.6mm 600ft 0.16lbs
Male NPTF x Male NPTF Swivel Ends
LLGR-MS04X200 1/4" 6.4mm 0.50" 12.6mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 2.50" 63.5mm 200ft 0.06lbs
LLGR-MS06X50 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 50ft 0.11lbs
LLGR-MS06X100 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 100ft 0.11lbs
LLGR-MS06X150 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 150ft 0.11lbs
LLGR-MS06X200 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 200ft 0.11lbs
LLGR-MS06X250 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 250ft 0.11lbs
LLGR-MS06X300 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 300ft 0.11lbs
Male NPTF Swivel x Male NPTF Swivel Ends
LLGR-MSMS06X300 3/8" 9.7mm 0.65" 16.5mm 4000 PSI 275.8 bar 10000 PSI 689.5 bar 3.00" 76.2mm 300ft 0.11lbs
