LLGR-MM06X300 Piranha® by Kuriyama | LLGR Series | Jetting Line Hose Assembly | 4000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Green | 300ft Length

Save $104.12

$522.58

$522.58 - $522.58

$522.58

$418.46

$418.46 - $418.46

$418.46

Kuriyama
Piranha® | LLGR Series | Jetting Line Hose Assembly | 4000 PSI | Green Cover

Used for jetting equipment in commercial, industrial and residential environments.

Made in the USA.

Specifications for Variant SKU: LLGR-MM06X300 Kuriyama
Brand:	Piranha
Series:	LLGR Series
Hose Color(s):	Green
Internal Diameter:	0.375in - 3/8in
Outer Diameter:	0.65in
Cover Construction:	Polyurethane
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPTF, 3/8in Male NPTF, Some Ends Match

SPECIFICATIONS

Other Features:
Applications:	Jetting/Lateral Line - Used for jetting equipment in commercial, industrial and residential environments.

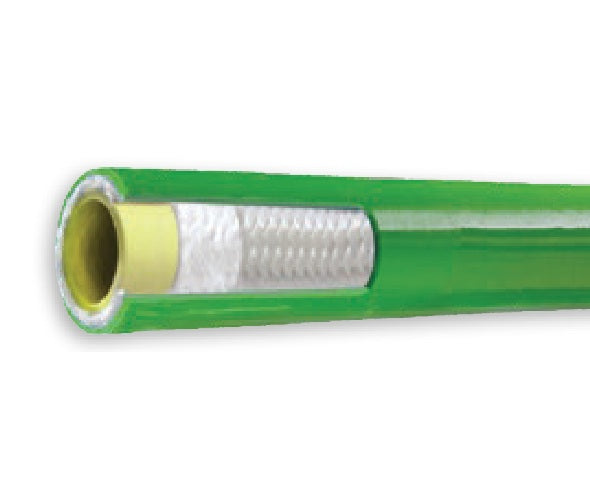

Tube:	Yellow seamless thermoplastic tube.	Reinforcement:	Double high tensile synthetic fiber braid.
Cover:	Abrasion resistant green polyurethane.	Service Temperature Range:	Sizes 02, 03: -40°F (-40°C) to +160°F (+71°C) Sizes 04, 06, 08: -40°F (-40°C) to +190°F (+87°C)
Specifications:	-

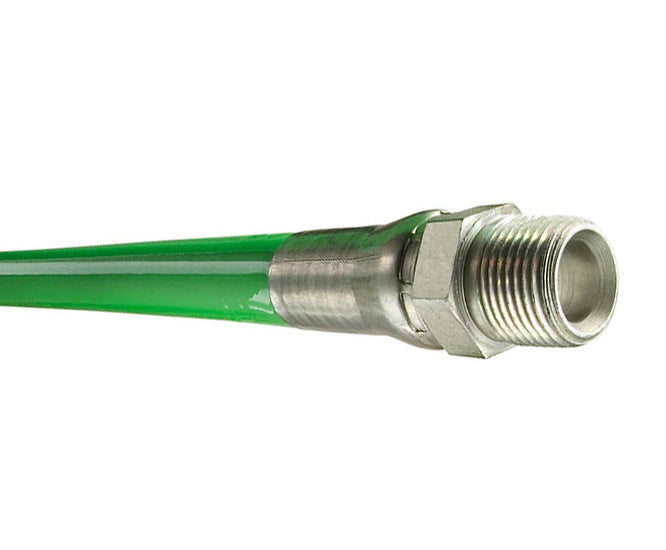

Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions. Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha Hose Product. Seamless Thermoplastic Tube - Provides maximum resistance to hydrolysis. High Tensile One or Two Synthetic Fiber Braids - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption. Abrasion Resistant Polyurethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance. End Fittings - Hoses are assembled Male x Male NPT threads as a standard. Pressure Testing - All Piranha Sewer Hoses are 100% pressure tested.

Part Number Male x Male NPTF	ID		OD		Max. Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
Part Number Male x Male NPTF	(in)	(mm)	(in)	(mm)	(psi)	(bar)	(psi)	(bar)	(in)	(mm)	(ft)	(lbs/ft)
Male NPTF x Male NPTF Ends
LLGR-MM02X50	1/8"	3.6mm	0.32"	8.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.25"	31.2mm	50ft	0.04lbs
LLGR-MM02X100	1/8"	3.6mm	0.32"	8.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.25"	31.2mm	100ft	0.04lbs
LLGR-MM02X150	1/8"	3.6mm	0.32"	8.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.25"	31.2mm	150ft	0.04lbs
LLGR-MM02X200	1/8"	3.6mm	0.32"	8.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.25"	31.2mm	200ft	0.04lbs
LLGR-MM02X250	1/8"	3.6mm	0.32"	8.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.25"	31.2mm	250ft	0.04lbs

LLGR-MM03X150	3/16"	4.8mm	0.41"	10.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	1.75"	44.5mm	150ft	0.05lbs

LLGR-MM04X100	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	100ft	0.06lbs
LLGR-MM04X150	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	150ft	0.06lbs
LLGR-MM04X200	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	200ft	0.06lbs
LLGR-MM04X250	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	250ft	0.06lbs
LLGR-MM04X300	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	300ft	0.06lbs
LLGR-MM04X500	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	500ft	0.06lbs

LLGR-MM06X100	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	100ft	0.11lbs
LLGR-MM06X150	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	150ft	0.11lbs
LLGR-MM06X200	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	200ft	0.11lbs
LLGR-MM06X250	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	250ft	0.11lbs
LLGR-MM06X300	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	300ft	0.11lbs
LLGR-MM06X400	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	400ft	0.11lbs
LLGR-MM06X500	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	500ft	0.11lbs

LLGR-MM08X100	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	100ft	0.16lbs
LLGR-MM08X150	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	150ft	0.16lbs
LLGR-MM08X200	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	200ft	0.16lbs
LLGR-MM08X300	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	300ft	0.16lbs
LLGR-MM08X400	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	400ft	0.16lbs
LLGR-MM08X500	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	500ft	0.16lbs
LLGR-MM08X600	1/2"	12.8mm	0.83"	21.2mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	4.00"	101.6mm	600ft	0.16lbs
Male NPTF x Male NPTF Swivel Ends
LLGR-MS04X200	1/4"	6.4mm	0.50"	12.6mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	2.50"	63.5mm	200ft	0.06lbs
LLGR-MS06X50	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	50ft	0.11lbs
LLGR-MS06X100	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	100ft	0.11lbs
LLGR-MS06X150	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	150ft	0.11lbs
LLGR-MS06X200	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	200ft	0.11lbs
LLGR-MS06X250	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	250ft	0.11lbs
LLGR-MS06X300	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	300ft	0.11lbs
Male NPTF Swivel x Male NPTF Swivel Ends
LLGR-MSMS06X300	3/8"	9.7mm	0.65"	16.5mm	4000 PSI	275.8 bar	10000 PSI	689.5 bar	3.00"	76.2mm	300ft	0.11lbs
