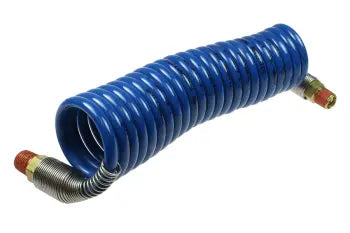

N18-10B by Coilhose | Coiled Air Hose | 1/8" Hose ID | 1/8" Male NPT Thread | 2 Swivel Fittings | Blue | Nylon | 10ft

Save $11.77

$29.42

$29.42 - $29.42

$29.42

$17.65

$17.65 - $17.65

$17.65

Coilhose Pneumatics - Coiled Hose - Nylon Air Hose - 1/8" ID

Quantity

Specifications for Variant SKU: N18-10B Coilhose
Hose Color(s):	Blue
Material(s):	Nylon
Special Properties:	Swivel, High Temerature

Overview:
This lightweight, permanently-coiled hose is manufactured from tough, abrasion-resistant Nylon 11 and designed to withstand temperatures between -60° F and +200° F. Each assembly is supplied with durable brass compression fittings, tube inserts and hose ferrules. Spring guards for additional strain relief are also provided on all assemblies, except 3/4".
Benefits:
Heavy duty brass fittings assure longer service life in rugged industrial environments. High quality Nylon 11 formulation resists moisture absorption, making it the superior nylon tubing choice for most applications.
Additional Sizes:
Additional Inside Diameters can be found here: Coiled Nylon Air Hose

Specifications:
Model	Tube I.D	Tube O.D	WallThickness	WPat 70° F	NominalCoil O.D.	RetractedLength	RecommendedWorkingLength	NominalWeight25'	StandardColor
N18-25	1/8"	.182/.189	.029+/-.003	315 PSI	1-1/2"	14-3/8"	22'	4 oz.	Blue
N316-25	3/16"	.247/.253	.031+/-.003	230 PSI	2-7/8"	9-1/2"	22'	8 oz.	Yellow
N14-25	1/4"	.305/.313	.033+/-.003	185 PSI	3-1/2"	10-1/2"	22'	10 oz.	Yellow
N516-25	5/16"	.369/.377	.037+/-.003	175 PSI	4-5/8"	10-1/2"	22'	12 oz.	Yellow
N38-25	3/8"	.465/.475	.045+/-.003	165 PSI	5-5/8"	10-1/4"	21'	16 oz.	Yellow
N12-25	1/2"	.620/.630	.062+/-.003	170 PSI	9"	9"	18'	30 oz.	Yellow
N34-25	3/4"	.878/.886	.066+/-.003	120 PSI	12-1/2"	9"	17'	34 oz.	Yellow

Part No	Inside Diameter	Overall Length	Fittings	Color	Retracted Length	Working Length
N18-10B	1/8"	10ft	1/8" 2 Swivel MPT	Blue	5.6"	8ft
N18-15B	1/8"	15 ft	1/8" 2 Swivel MPT	Blue	8.3"	12ft
N18-20B	1/8"	20 ft	1/8" 2 Swivel MPT	Blue	11.1"	16ft
N18-25B	1/8"	25 ft	1/8" 2 Swivel MPT	Blue	13.9"	20ft
N18-50	1/8"	50 ft	None	Blue	27.8"	40ft

1/8" I.D. is available in blue only. All other hoses are available in yellow (standard) or red (contact customer service).
