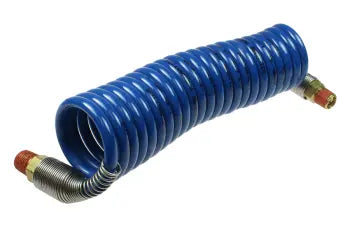

N18-50 by Coilhose | Coiled Air Hose | 1/8" Hose ID | No Fittings | Blue | Nylon | 50ft

N18-50 by Coilhose | Coiled Air Hose | 1/8" Hose ID | No Fittings | Blue | Nylon | 50ft

Save $18.13 Save $18.13
$45.32
$45.32 - $45.32
$45.32
$27.19
$27.19 - $27.19
$27.19
Coilhose Pneumatics - Coiled Hose - Nylon Air Hose - 1/8" ID
Specifications for Variant SKU: N18-50 Coilhose
Hose Color(s): Blue
Material(s): Nylon
Special Properties: High Temperature
Overview:
  • This lightweight, permanently-coiled hose is manufactured from tough, abrasion-resistant Nylon 11 and designed to withstand temperatures between -60° F and +200° F. Each assembly is supplied with durable brass compression fittings, tube inserts and hose ferrules. Spring guards for additional strain relief are also provided on all assemblies, except 3/4".
Benefits:
  • Heavy duty brass fittings assure longer service life in rugged industrial environments.
  • High quality Nylon 11 formulation resists moisture absorption, making it the superior nylon tubing choice for most applications.
Additional Sizes:

Specifications:
Model Tube I.D Tube O.D WallThickness WPat 70° F NominalCoil O.D. RetractedLength RecommendedWorkingLength NominalWeight25' StandardColor
N18-25 1/8" .182/.189 .029+/-.003 315 PSI 1-1/2" 14-3/8" 22' 4 oz. Blue
N316-25 3/16" .247/.253 .031+/-.003 230 PSI 2-7/8" 9-1/2" 22' 8 oz. Yellow
N14-25 1/4" .305/.313 .033+/-.003 185 PSI 3-1/2" 10-1/2" 22' 10 oz. Yellow
N516-25 5/16" .369/.377 .037+/-.003 175 PSI 4-5/8" 10-1/2" 22' 12 oz. Yellow
N38-25 3/8" .465/.475 .045+/-.003 165 PSI 5-5/8" 10-1/4" 21' 16 oz. Yellow
N12-25 1/2" .620/.630 .062+/-.003 170 PSI 9" 9" 18' 30 oz. Yellow
N34-25 3/4" .878/.886 .066+/-.003 120 PSI 12-1/2" 9" 17' 34 oz. Yellow

Part No Inside
Diameter		 Overall
Length		 Fittings Color Retracted
Length		 Working
Length
N18-10B 1/8" 10ft 1/8" 2 Swivel MPT Blue 5.6" 8ft
N18-15B 1/8" 15 ft 1/8" 2 Swivel MPT Blue 8.3" 12ft
N18-20B 1/8" 20 ft 1/8" 2 Swivel MPT Blue 11.1" 16ft
N18-25B 1/8" 25 ft 1/8" 2 Swivel MPT Blue 13.9" 20ft
N18-50 1/8" 50 ft None Blue 27.8" 40ft
1/8" I.D. is available in blue only. All other hoses are available in yellow (standard) or red (contact customer service).
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
