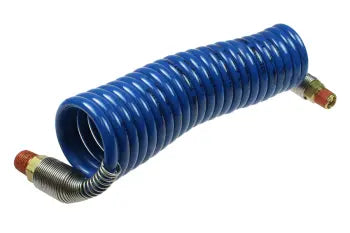

N18-25B by Coilhose | Coiled Air Hose | 1/8" Hose ID | 1/8" Male NPT Thread | 2 Swivel Fittings | Blue | Nylon | 25ft

N18-25B by Coilhose | Coiled Air Hose | 1/8" Hose ID | 1/8" Male NPT Thread | 2 Swivel Fittings | Blue | Nylon | 25ft

Save $14.53 Save $14.53
$36.32
$36.32 - $36.32
$36.32
$21.79
$21.79 - $21.79
$21.79
Coilhose Pneumatics - Coiled Hose - Nylon Air Hose - 1/8" ID
Specifications for Variant SKU: N18-25B Coilhose
Hose Color(s): Blue
Material(s): Nylon
Special Properties: Swivel, High Temerature
Overview:
  • This lightweight, permanently-coiled hose is manufactured from tough, abrasion-resistant Nylon 11 and designed to withstand temperatures between -60° F and +200° F. Each assembly is supplied with durable brass compression fittings, tube inserts and hose ferrules. Spring guards for additional strain relief are also provided on all assemblies, except 3/4".
Benefits:
  • Heavy duty brass fittings assure longer service life in rugged industrial environments.
  • High quality Nylon 11 formulation resists moisture absorption, making it the superior nylon tubing choice for most applications.
Additional Sizes:

Specifications:
Model Tube I.D Tube O.D WallThickness WPat 70° F NominalCoil O.D. RetractedLength RecommendedWorkingLength NominalWeight25' StandardColor
N18-25 1/8" .182/.189 .029+/-.003 315 PSI 1-1/2" 14-3/8" 22' 4 oz. Blue
N316-25 3/16" .247/.253 .031+/-.003 230 PSI 2-7/8" 9-1/2" 22' 8 oz. Yellow
N14-25 1/4" .305/.313 .033+/-.003 185 PSI 3-1/2" 10-1/2" 22' 10 oz. Yellow
N516-25 5/16" .369/.377 .037+/-.003 175 PSI 4-5/8" 10-1/2" 22' 12 oz. Yellow
N38-25 3/8" .465/.475 .045+/-.003 165 PSI 5-5/8" 10-1/4" 21' 16 oz. Yellow
N12-25 1/2" .620/.630 .062+/-.003 170 PSI 9" 9" 18' 30 oz. Yellow
N34-25 3/4" .878/.886 .066+/-.003 120 PSI 12-1/2" 9" 17' 34 oz. Yellow

Part No Inside
Diameter		 Overall
Length		 Fittings Color Retracted
Length		 Working
Length
N18-10B 1/8" 10ft 1/8" 2 Swivel MPT Blue 5.6" 8ft
N18-15B 1/8" 15 ft 1/8" 2 Swivel MPT Blue 8.3" 12ft
N18-20B 1/8" 20 ft 1/8" 2 Swivel MPT Blue 11.1" 16ft
N18-25B 1/8" 25 ft 1/8" 2 Swivel MPT Blue 13.9" 20ft
N18-50 1/8" 50 ft None Blue 27.8" 40ft
1/8" I.D. is available in blue only. All other hoses are available in yellow (standard) or red (contact customer service).
