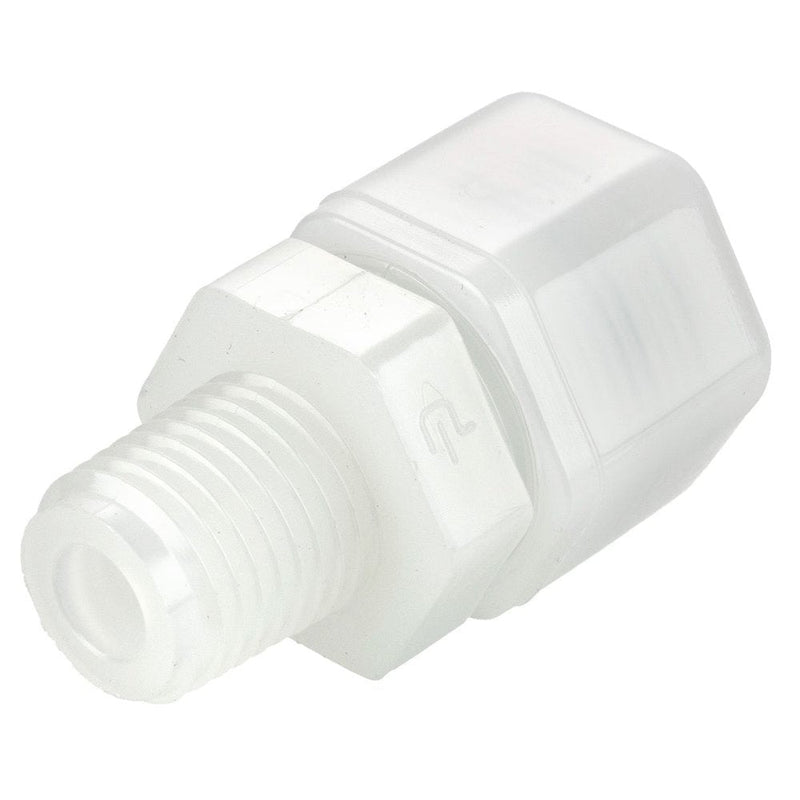

N4MC2 by Parker | Threaded Fitting | 1/4" Tube Connector x 1/8" Male NPTF Thread | 11/16" Hex | 1.28" Length | Straight | Natural | Nylon

Save $2.14

$3.63

$3.63 - $3.63

$3.63

$1.49

$1.49 - $1.49

$1.49

by Parker Hannifin
Fast & Tite® Fittings:MC - Male Connector

Specifications for Variant SKU: N4MC2 Parker
Brand:	Fast & Tite®
Series:	MC Series
Shape (Orientation):	Straight
Material(s):	Nylon, 302 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Food Grade


Product Features:	Available in black polypropylene and white nylon White polypropylene available as a non-standard part 302 stainless steel grab ring Nitrile O-ring FDA compliant material NSF/ANSI-51
Markets:	Water Filtration Beverage Dispensing Life Science Bottling Semi-Conductor
Applications:	Water End-of-Arm Tooling Beverages Food Cooling Systems Vacuum
Temperature Range:	0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:	Thermoplastic Soft Metal Glass


Black Polypropylene Part Number	White Polypropylene Part Number	Natural Nylon Part Number	Nom. Tube O.D.	NPTF Thread Size	Hex (C)	Overall Length (L)	Flow Diameter (D)
P4MC2	-	N4MC2	1/4"	1/8"	11/16"	1.28"	.170"
P4MC4	-	N4MC4	1/4"	1/4"	11/16"	1.51"	.170"
P4MC6	W4MC6	N4MC6	1/4"	3/8"	11/16"	1.48"	.170"
P5MC2	-	N5MC2	5/16"	1/8"	11/16"	1.38"	.170"
P5MC4	-	N5MC4	5/16"	1/4"	11/16"	1.50"	.250"
P6MC2	-	N6MC2	3/8"	1/8"	13/16"	1.50"	.170"
P6MC4	W6MC4	N6MC4	3/8"	1/4"	13/16"	1.67"	.250"
P6MC6	W6MC6	N6MC6	3/8"	3/8"	13/16"	1.67"	.250"
P6MC8	W6MC8	N6MC8	3/8"	1/2"	1"	1.78"	.250"
P6MC12	-	N6MC12	3/8"	3/4"	1"	1.84"	.250"
P8MC2	-	-	1/2"	1/8"	1"	1.61"	.170"
P8MC4	W8MC4	N8MC4	1/2"	1/4"	1"	1.74"	.250"
P8MC6	W8MC6	N8MC6	1/2"	3/8"	1"	1.74"	.375"
P8MC8	W8MC8	N8MC8	1/2"	1/2"	1"	1.87"	.375"
P8MC12	W8MC12	N8MC12	1/2"	3/4"	1"	1.89"	.375"
P10MC2	-	-	5/8"	1/8"	1-1/8"	1.75"	.170"
P10MC4	-	N10MC4	5/8"	1/4"	1-1/8"	1.90"	.250"
P10MC6	-	N10MC6	5/8"	3/8"	1-1/8"	1.90"	.375"
P10MC8	W10MC8	N10MC8	5/8"	1/2"	1-1/8"	2.01"	.500"
P10MC12	W10MC12	N10MC12	5/8"	3/4"	1-1/8"	2.04"	.500"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
