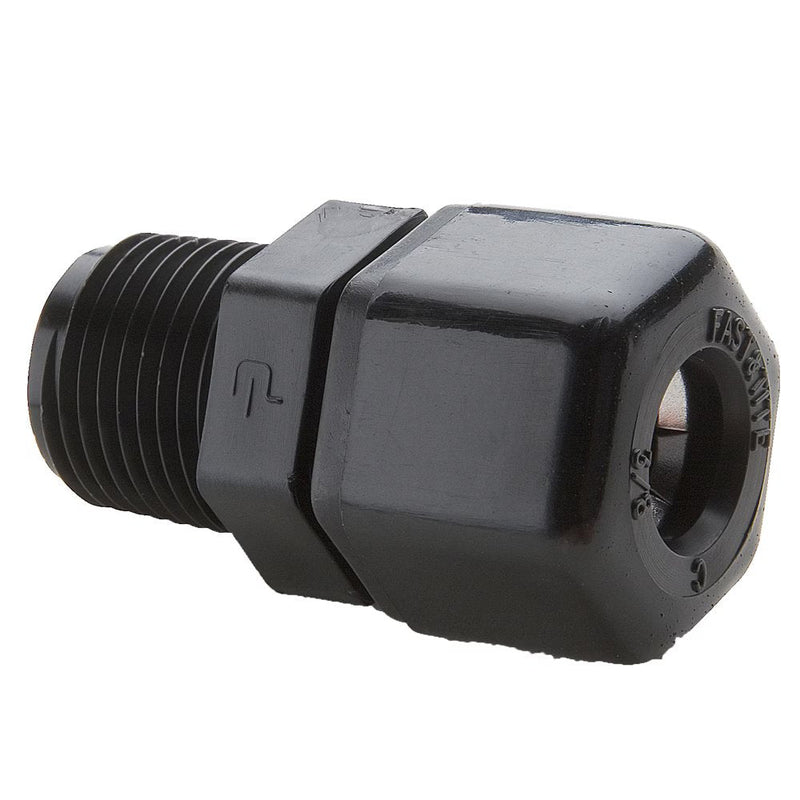

P8MC6 by Parker | Threaded Fitting | 1/2" Tube Connector x 3/8" Male NPTF Thread | 1" Hex | 1.74" Length | Straight | Black | Polypropylene

P8MC6 by Parker | Threaded Fitting | 1/2" Tube Connector x 3/8" Male NPTF Thread | 1" Hex | 1.74" Length | Straight | Black | Polypropylene

Save $1.39 Save $1.39
$3.48
$3.48 - $3.48
$3.48
$2.09
$2.09 - $2.09
$2.09

by Parker Hannifin
Fast & Tite® Fittings:MC - Male Connector
Specifications for Variant SKU: P8MC6 Parker
Brand: Fast & Tite®
Series: MC Series
Shape (Orientation): Straight
Material(s): Polypropylene, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number White Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. NPTF Thread Size Hex (C) Overall Length (L) Flow Diameter (D)
P4MC2 - N4MC2 1/4" 1/8" 11/16" 1.28" .170"
P4MC4 - N4MC4 1/4" 1/4" 11/16" 1.51" .170"
P4MC6 W4MC6 N4MC6 1/4" 3/8" 11/16" 1.48" .170"
P5MC2 - N5MC2 5/16" 1/8" 11/16" 1.38" .170"
P5MC4 - N5MC4 5/16" 1/4" 11/16" 1.50" .250"
P6MC2 - N6MC2 3/8" 1/8" 13/16" 1.50" .170"
P6MC4 W6MC4 N6MC4 3/8" 1/4" 13/16" 1.67" .250"
P6MC6 W6MC6 N6MC6 3/8" 3/8" 13/16" 1.67" .250"
P6MC8 W6MC8 N6MC8 3/8" 1/2" 1" 1.78" .250"
P6MC12 - N6MC12 3/8" 3/4" 1" 1.84" .250"
P8MC2 - - 1/2" 1/8" 1" 1.61" .170"
P8MC4 W8MC4 N8MC4 1/2" 1/4" 1" 1.74" .250"
P8MC6 W8MC6 N8MC6 1/2" 3/8" 1" 1.74" .375"
P8MC8 W8MC8 N8MC8 1/2" 1/2" 1" 1.87" .375"
P8MC12 W8MC12 N8MC12 1/2" 3/4" 1" 1.89" .375"
P10MC2 - - 5/8" 1/8" 1-1/8" 1.75" .170"
P10MC4 - N10MC4 5/8" 1/4" 1-1/8" 1.90" .250"
P10MC6 - N10MC6 5/8" 3/8" 1-1/8" 1.90" .375"
P10MC8 W10MC8 N10MC8 5/8" 1/2" 1-1/8" 2.01" .500"
P10MC12 W10MC12 N10MC12 5/8" 3/4" 1-1/8" 2.04" .500"
