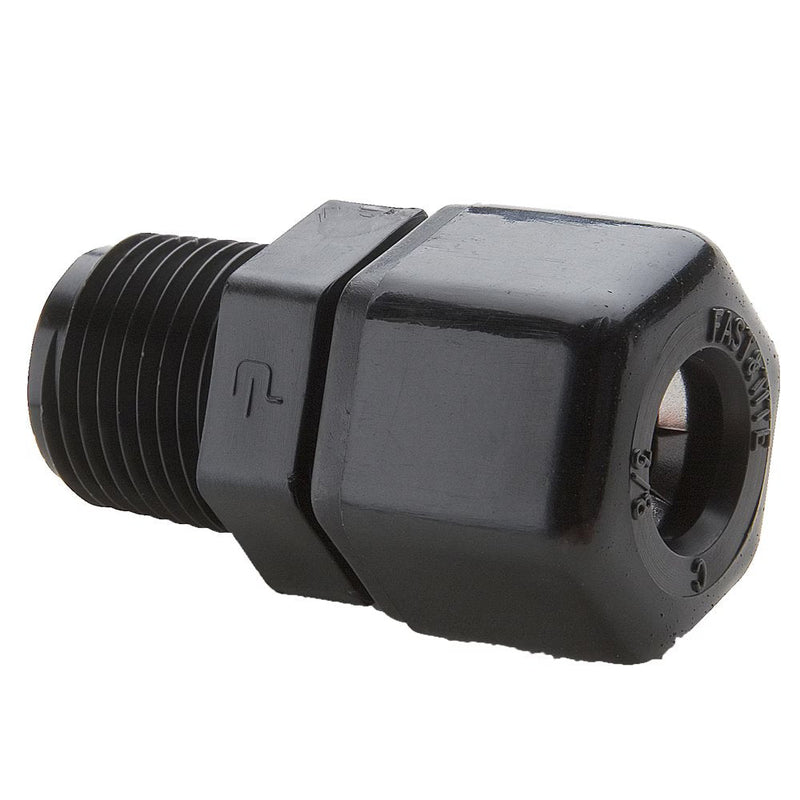

P4MC2 by Parker | Threaded Fitting | 1/4" Tube Connector x 1/8" Male NPTF Thread | 11/16" Hex | 1.28" Length | Straight | Black | Polypropylene

P4MC2 by Parker | Threaded Fitting | 1/4" Tube Connector x 1/8" Male NPTF Thread | 11/16" Hex | 1.28" Length | Straight | Black | Polypropylene

Save $1.80 Save $1.80
$3.07
$3.07 - $3.07
$3.07
$1.27
$1.27 - $1.27
$1.27

by Parker Hannifin
Fast & Tite® Fittings:MC - Male Connector
Specifications for Variant SKU: P4MC2 Parker
Brand: Fast & Tite®
Series: MC Series
Shape (Orientation): Straight
Material(s): Polypropylene, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number White Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. NPTF Thread Size Hex (C) Overall Length (L) Flow Diameter (D)
P4MC2 - N4MC2 1/4" 1/8" 11/16" 1.28" .170"
P4MC4 - N4MC4 1/4" 1/4" 11/16" 1.51" .170"
P4MC6 W4MC6 N4MC6 1/4" 3/8" 11/16" 1.48" .170"
P5MC2 - N5MC2 5/16" 1/8" 11/16" 1.38" .170"
P5MC4 - N5MC4 5/16" 1/4" 11/16" 1.50" .250"
P6MC2 - N6MC2 3/8" 1/8" 13/16" 1.50" .170"
P6MC4 W6MC4 N6MC4 3/8" 1/4" 13/16" 1.67" .250"
P6MC6 W6MC6 N6MC6 3/8" 3/8" 13/16" 1.67" .250"
P6MC8 W6MC8 N6MC8 3/8" 1/2" 1" 1.78" .250"
P6MC12 - N6MC12 3/8" 3/4" 1" 1.84" .250"
P8MC2 - - 1/2" 1/8" 1" 1.61" .170"
P8MC4 W8MC4 N8MC4 1/2" 1/4" 1" 1.74" .250"
P8MC6 W8MC6 N8MC6 1/2" 3/8" 1" 1.74" .375"
P8MC8 W8MC8 N8MC8 1/2" 1/2" 1" 1.87" .375"
P8MC12 W8MC12 N8MC12 1/2" 3/4" 1" 1.89" .375"
P10MC2 - - 5/8" 1/8" 1-1/8" 1.75" .170"
P10MC4 - N10MC4 5/8" 1/4" 1-1/8" 1.90" .250"
P10MC6 - N10MC6 5/8" 3/8" 1-1/8" 1.90" .375"
P10MC8 W10MC8 N10MC8 5/8" 1/2" 1-1/8" 2.01" .500"
P10MC12 W10MC12 N10MC12 5/8" 3/4" 1-1/8" 2.04" .500"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
