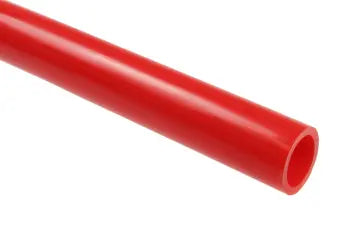

NC0216-1000R by Coilhose | Tubing | 1/8" OD x .093" ID | .016" Wall thickness | Red | Nylon | 1000ft

Save $17.64

$158.78

$158.78 - $158.78

$158.78

$141.14

$141.14 - $141.14

$141.14

Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 1/8" OD x .093" ID

Quantity

Specifications for Variant SKU: NC0216-1000R Coilhose
Hose Color(s):	Red
Material(s):	Nylon

Overview:
Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its Dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:
Dimensional stability makes it compatible with: Coilock Fittings Poly-Tube Fittings

Temperature Range:	-60° F to 200° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	.0.002"; -0.004" All inch sizes +0.051 mm; -.1 mm All Metric sizes	Hardness:	78 Rockwell R
Working Pressure:	4 to 1 Safety Factor	Compliance:	Meets UL94HB
UV Stabilized:	Yes

Part Number 100ft Length	Part Number 500ft Length	Part Number 1000ft Length	Part Number 2500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
NC0216-100K	NC0216-500K	NC0216-1000K	NC0216-2500K	Black	1/8" x .093"	.016"	270 PSI
NC0216-100B	NC0216-500B	NC0216-1000B	NC0216-2500B	Blue
NC0216-100G	NC0216-500G	NC0216-1000G	NC0216-2500G	Green
NC0216-100N	NC0216-500N	NC0216-1000N	NC0216-2500N	Natural
NC0216-100R	NC0216-500R	NC0216-1000R	NC0216-2500R	Red
NC0216-100Y	NC0216-500Y	NC0216-1000Y	NC0216-2500Y	Yellow
