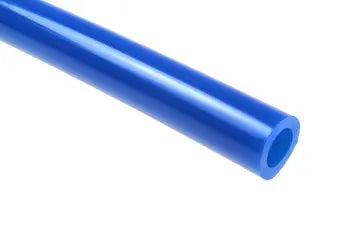

NC0216-100B by Coilhose | Tubing | 1/8" OD x .093" ID | .016" Wall thickness | Blue | Nylon | 100ft

Save $2.08

$18.71

$18.71 - $18.71

$18.71

$16.63

$16.63 - $16.63

$16.63

Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 1/8" OD x .093" ID

Quantity

Specifications for Variant SKU: NC0216-100B Coilhose
Hose Color(s):	Blue
Material(s):	Nylon

Overview:
Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its Dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:
Dimensional stability makes it compatible with: Coilock Fittings Poly-Tube Fittings

Temperature Range:	-60° F to 200° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	.0.002"; -0.004" All inch sizes +0.051 mm; -.1 mm All Metric sizes	Hardness:	78 Rockwell R
Working Pressure:	4 to 1 Safety Factor	Compliance:	Meets UL94HB
UV Stabilized:	Yes

Part Number 100ft Length	Part Number 500ft Length	Part Number 1000ft Length	Part Number 2500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
NC0216-100K	NC0216-500K	NC0216-1000K	NC0216-2500K	Black	1/8" x .093"	.016"	270 PSI
NC0216-100B	NC0216-500B	NC0216-1000B	NC0216-2500B	Blue
NC0216-100G	NC0216-500G	NC0216-1000G	NC0216-2500G	Green
NC0216-100N	NC0216-500N	NC0216-1000N	NC0216-2500N	Natural
NC0216-100R	NC0216-500R	NC0216-1000R	NC0216-2500R	Red
NC0216-100Y	NC0216-500Y	NC0216-1000Y	NC0216-2500Y	Yellow

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.

Shop Parts by Coilhose Pneumatics
