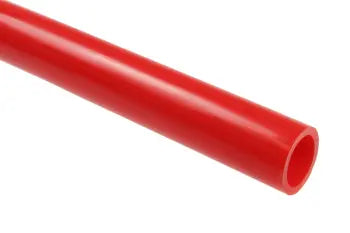

NC0216-500R by Coilhose | Tubing | 1/8" OD x .093" ID | .016" Wall thickness | Red | Nylon | 500ft

NC0216-500R by Coilhose | Tubing | 1/8" OD x .093" ID | .016" Wall thickness | Red | Nylon | 500ft

Save $9.02 Save $9.02
$81.17
$81.17 - $81.17
$81.17
$72.15
$72.15 - $72.15
$72.15
Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 1/8" OD x .093" ID
Specifications for Variant SKU: NC0216-500R Coilhose
Hose Color(s): Red
Material(s): Nylon
Overview:
  • Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its Dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:

Temperature Range: -60° F to 200° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: .0.002"; -0.004" All inch sizes
+0.051 mm; -.1 mm All Metric sizes		 Hardness: 78 Rockwell R
Working Pressure: 4 to 1 Safety Factor Compliance: Meets UL94HB
UV Stabilized: Yes

Part Number
100ft Length		 Part Number
500ft Length		 Part Number
1000ft Length		 Part Number
2500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
NC0216-100K NC0216-500K NC0216-1000K NC0216-2500K Black 1/8" x .093" .016" 270 PSI
NC0216-100B NC0216-500B NC0216-1000B NC0216-2500B Blue
NC0216-100G NC0216-500G NC0216-1000G NC0216-2500G Green
NC0216-100N NC0216-500N NC0216-1000N NC0216-2500N Natural
NC0216-100R NC0216-500R NC0216-1000R NC0216-2500R Red
NC0216-100Y NC0216-500Y NC0216-1000Y NC0216-2500Y Yellow
