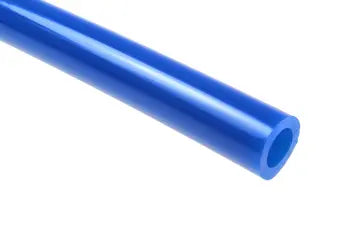

NC0440-1000B by Coilhose | Tubing | 1/4" OD x .170" ID | .040" Wall thickness | Blue | Nylon | 1000ft

NC0440-1000B by Coilhose | Tubing | 1/4" OD x .170" ID | .040" Wall thickness | Blue | Nylon | 1000ft

Save $289.35 Save $289.35
$723.38
$723.38 - $723.38
$723.38
$434.03
$434.03 - $434.03
$434.03
Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 1/4" OD x .170" ID
Specifications for Variant SKU: NC0440-1000B Coilhose
Hose Color(s): Blue
Material(s): Nylon
Overview:
  • Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its Dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:

Temperature Range: -60° F to 200° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: .0.002"; -0.004" All inch sizes
+0.051 mm; -.1 mm All Metric sizes		 Hardness: 78 Rockwell R
Working Pressure: 4 to 1 Safety Factor Compliance: Meets UL94HB
UV Stabilized: Yes

Part Number
100ft Length		 Part Number
500ft Length		 Part Number
2000ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
NC0440-100Y NC0440-500Y NC0440-1000Y Yellow 1/4" x .170" .040" 330 PSI
NC0440-100R NC0440-500R NC0440-1000R Red
NC0440-100N NC0440-500N NC0440-1000N Natural
NC0440-100G NC0440-500G NC0440-1000G Green
NC0440-100B NC0440-500B NC0440-1000B Blue
NC0440-100K NC0440-500K NC0440-1000K Black
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
