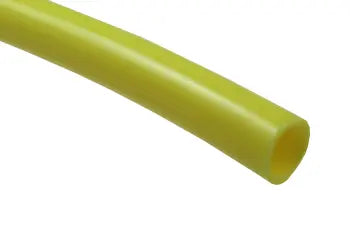

NC0440-100Y by Coilhose | Tubing | 1/4" OD x .170" ID | .040" Wall thickness | Yellow | Nylon | 100ft

Save $6.28

$56.49

$56.49 - $56.49

$56.49

$50.21

$50.21 - $50.21

$50.21

Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 1/4" OD x .170" ID

Quantity

Specifications for Variant SKU: NC0440-100Y Coilhose
Hose Color(s):	Yellow
Material(s):	Nylon

Overview:
Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its Dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:
Dimensional stability makes it compatible with: Coilock Fittings Poly-Tube Fittings

Temperature Range:	-60° F to 200° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	.0.002"; -0.004" All inch sizes +0.051 mm; -.1 mm All Metric sizes	Hardness:	78 Rockwell R
Working Pressure:	4 to 1 Safety Factor	Compliance:	Meets UL94HB
UV Stabilized:	Yes

Part Number 100ft Length	Part Number 500ft Length	Part Number 2000ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
NC0440-100Y	NC0440-500Y	NC0440-1000Y	Yellow	1/4" x .170"	.040"	330 PSI
NC0440-100R	NC0440-500R	NC0440-1000R	Red
NC0440-100N	NC0440-500N	NC0440-1000N	Natural
NC0440-100G	NC0440-500G	NC0440-1000G	Green
NC0440-100B	NC0440-500B	NC0440-1000B	Blue
NC0440-100K	NC0440-500K	NC0440-1000K	Black
