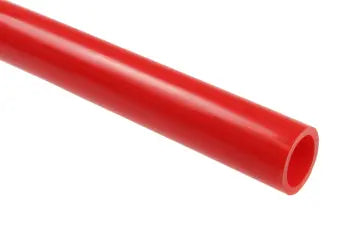

NC0440-500R by Coilhose | Tubing | 1/4" OD x .170" ID | .040" Wall thickness | Red | Nylon | 500ft

Save $28.43

$255.84

$255.84 - $255.84

$255.84

$227.41

$227.41 - $227.41

$227.41

Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 1/4" OD x .170" ID

Quantity

Specifications for Variant SKU: NC0440-500R Coilhose
Hose Color(s):	Red
Material(s):	Nylon

Overview:
Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its Dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:
Dimensional stability makes it compatible with: Coilock Fittings Poly-Tube Fittings

Temperature Range:	-60° F to 200° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	.0.002"; -0.004" All inch sizes +0.051 mm; -.1 mm All Metric sizes	Hardness:	78 Rockwell R
Working Pressure:	4 to 1 Safety Factor	Compliance:	Meets UL94HB
UV Stabilized:	Yes

Part Number 100ft Length	Part Number 500ft Length	Part Number 2000ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
NC0440-100Y	NC0440-500Y	NC0440-1000Y	Yellow	1/4" x .170"	.040"	330 PSI
NC0440-100R	NC0440-500R	NC0440-1000R	Red
NC0440-100N	NC0440-500N	NC0440-1000N	Natural
NC0440-100G	NC0440-500G	NC0440-1000G	Green
NC0440-100B	NC0440-500B	NC0440-1000B	Blue
NC0440-100K	NC0440-500K	NC0440-1000K	Black

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.

Shop Parts by Coilhose Pneumatics
